Individual hose record
73050200A095 Hose Repair Specifications
Excavator · Sunward · SWE155F · Attachments – Quick Coupler
Finished length950 mm
Locate this hose

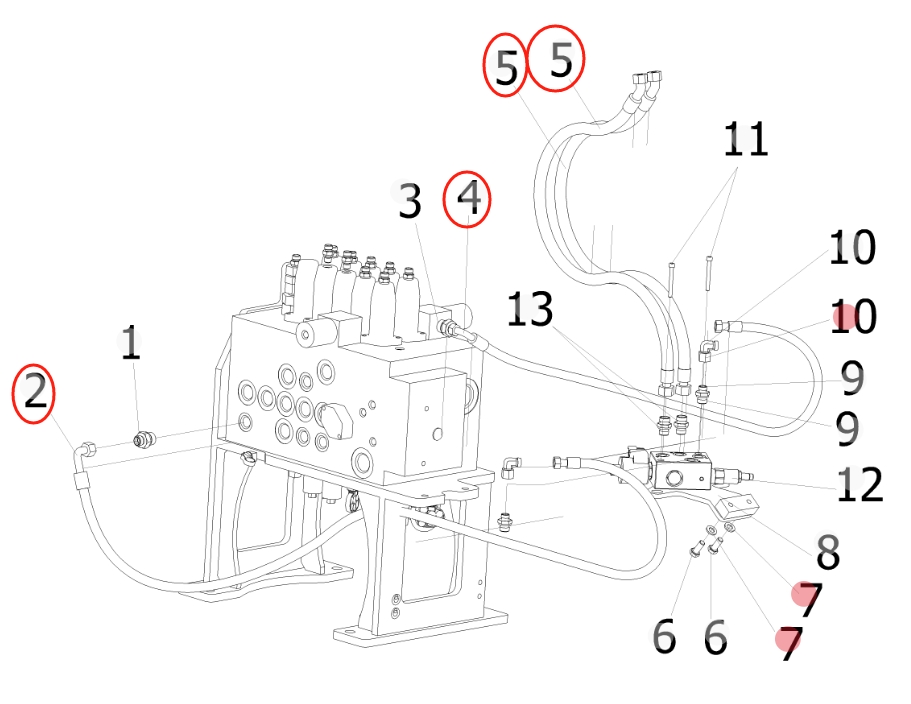

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 73050200A095 before removing the hose.
Repair specifications
- Part number
- 73050200A095
- Diagram pipe number
- 5
- Installation route
- 大臂(快换)~电磁阀(快换)
- Hose specification
- DN10;2SN-06;35MPa
- Finished length
- 950 mm
- Working pressure
- 35 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 45°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 2
