Diagram Pipe No. 4
4631051
Installation route: Left boom-cylinder grease lineOriginal Chinese: 左大臂油缸黄油管
- Length
- 3,000 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
Individual hose record
4358894 Hose Repair Specifications
Excavator · Hitachi · ZX290LC-5G · Grease Lines
Finished length670 mm
Locate this hose

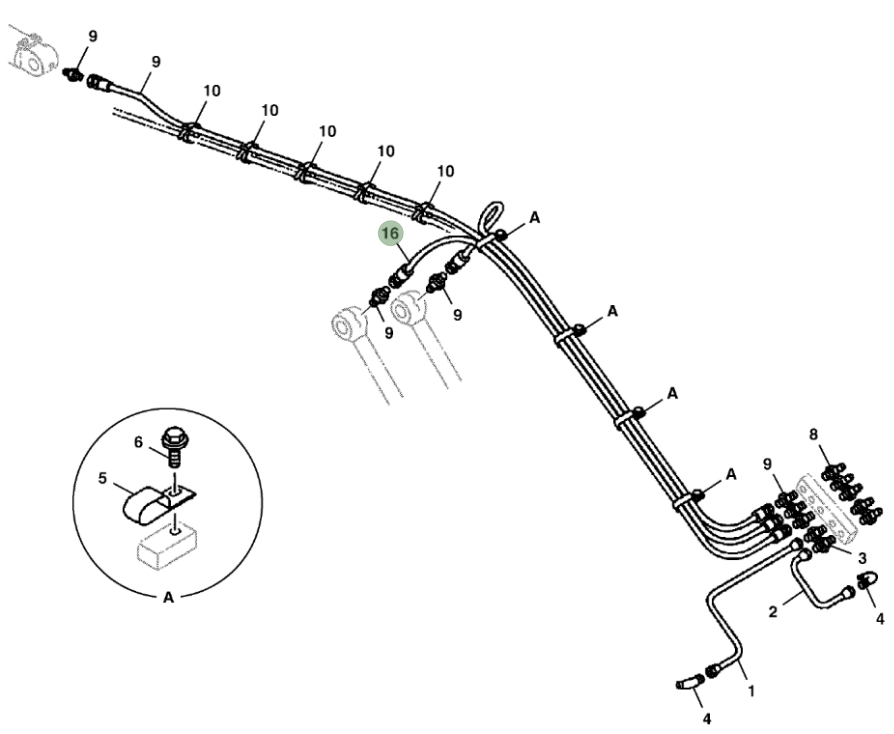

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number 4358894 before removing the hose.
Repair specifications
- Part number
- 4358894
- Diagram pipe number
- 16
- Installation route
- Right boom-cylinder grease lineOriginal Chinese: 右大臂油缸黄油管
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 670 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
Same system
Related Hoses
Diagram Pipe No. 10
4483563
Installation route: Right boom-cylinder grease lineOriginal Chinese: 右大臂油缸黄油管
- Length
- 2,900 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
