Individual hose record

KRJ16340 Hose Repair Specifications

Excavator · Case · CX210C LC · Attachments – Breaker

Finished length1,080 mm

Locate this hose

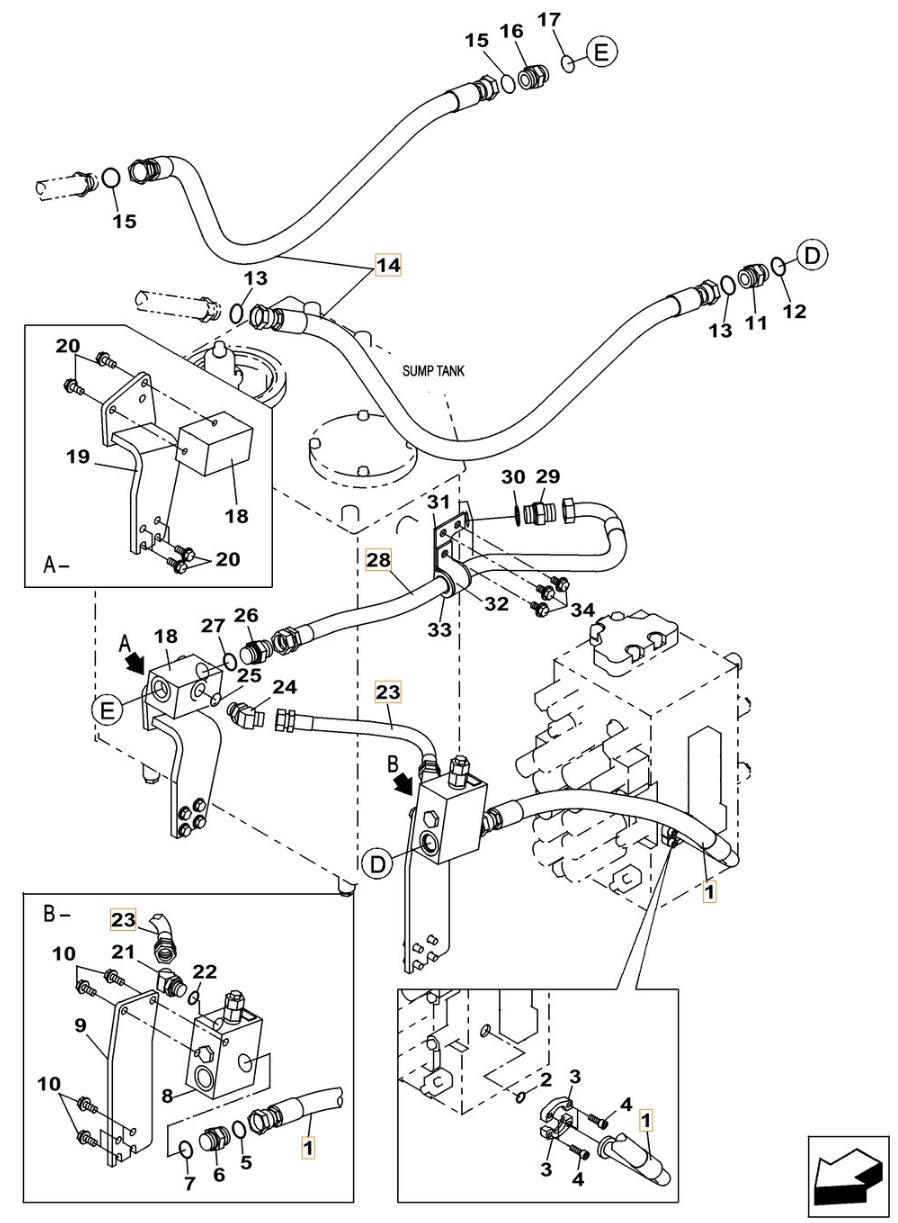

Installation diagram — Pipe No. 28

Locate Pipe No. 28 in the diagram, then confirm part number KRJ16340 before removing the hose.

Case CX210C LC installation diagram showing hydraulic hose KRJ16340 at Pipe No. 28 — **Case CX210C LC · KRJ16340**Part KRJ16340 · Pipe No. 28Open full-size diagram

Repair specifications

Part number: KRJ16340
Diagram pipe number: 28
Installation route: 右过渡阀块(破碎器)~液压油箱
Hose specification: DN25;4SP-16;32.5MPa
Finished length: 1,080 mm
Working pressure: 32.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
