Individual hose record

KHJ15170 Hose Repair Specifications

Excavator · Case · CX210C LC · Attachments – Breaker

Finished length3,500 mm

Locate this hose

Installation diagram — Pipe No. 32

Locate Pipe No. 32 in the diagram, then confirm part number KHJ15170 before removing the hose.

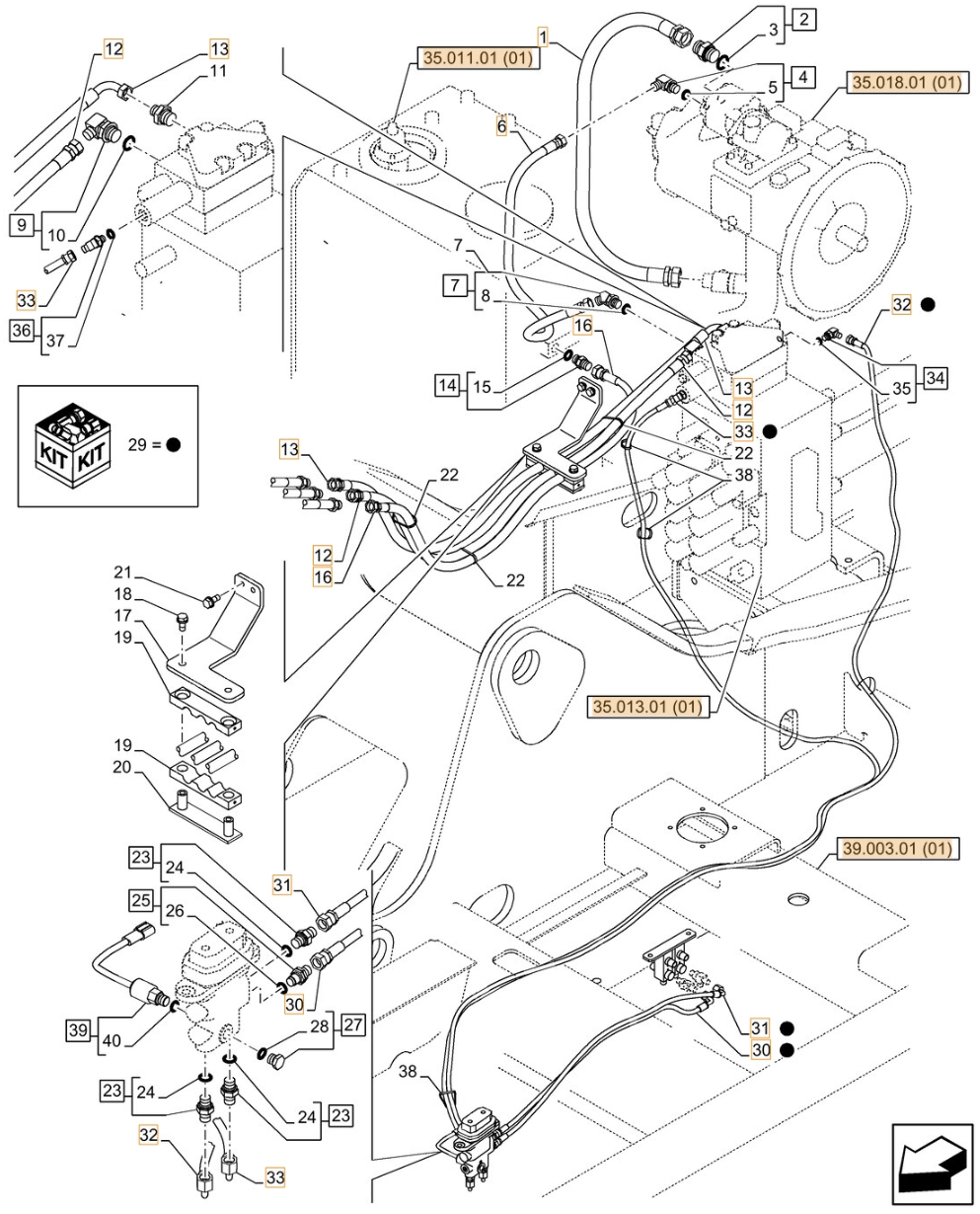

Case CX210C LC installation diagram showing hydraulic hose KHJ15170 at Pipe No. 32 — **Case CX210C LC**Part KHJ15170 · Pipe No. 32Open full-size diagram

Repair specifications

Part number: KHJ15170
Diagram pipe number: 32
Installation route: 破碎器踏板~分配阀后
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,500 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
