Individual hose record

4316023 Hose Repair Specifications

Excavator · Hitachi · ZX450LC-3 · Hydraulic Pump

Finished length480 mm

Locate this hose

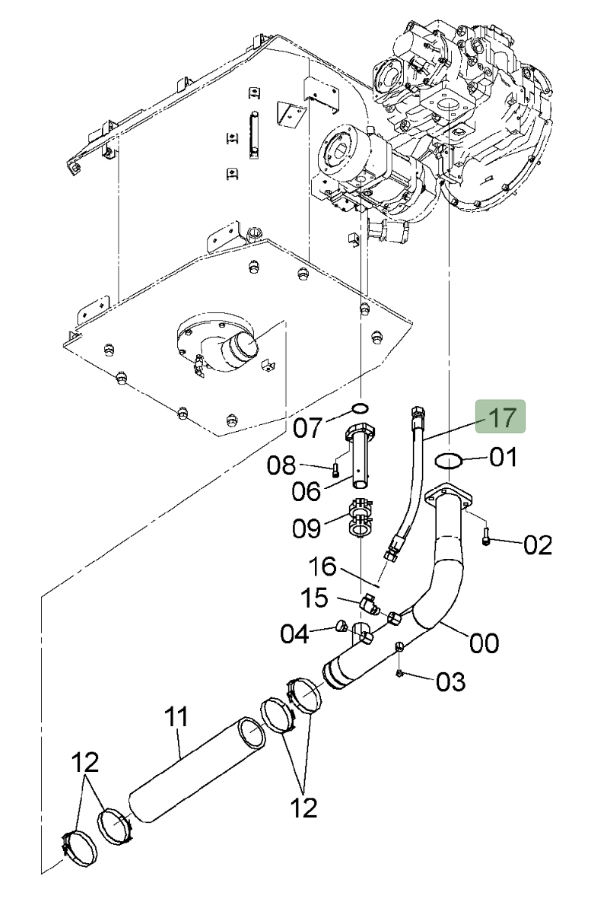

Installation diagram — Pipe No. 17

Locate Pipe No. 17 in the diagram, then confirm part number 4316023 before removing the hose.

Hitachi ZX450LC-3 installation diagram showing hydraulic hose 4316023 at Pipe No. 17 — **Hitachi ZX450LC-3**Part 4316023 · Pipe No. 17Open full-size diagram

Repair specifications

Part number: 4316023
Diagram pipe number: 17
Installation route: 液压泵~吸油铁管
Hose specification: DN25;2SN-16;16.5MPa
Finished length: 480 mm
Working pressure: 16.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1
