Individual hose record

4452733 Hose Repair Specifications

Excavator · Hitachi · ZX450LC-3 · Hydraulic Pump

Finished length450 mm

Locate this hose

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 4452733 before removing the hose.

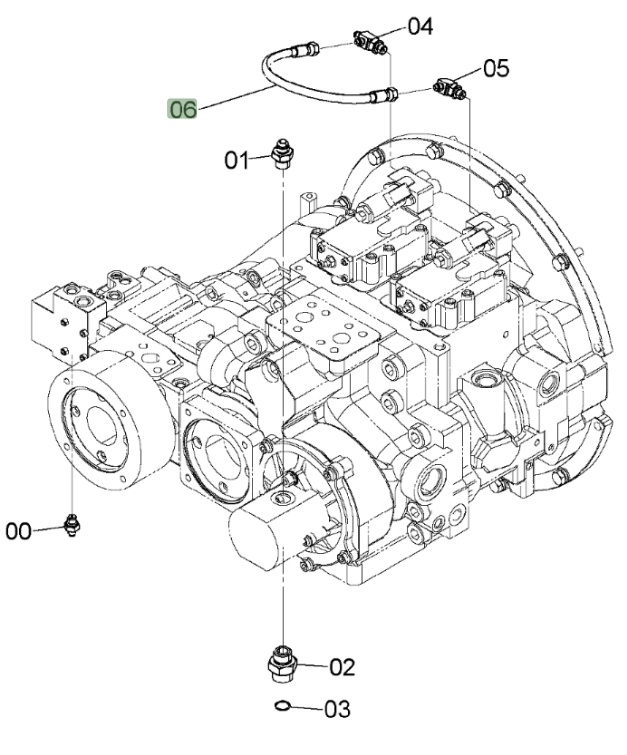

Hitachi ZX450LC-3 installation diagram showing hydraulic hose 4452733 at Pipe No. 6 — **Hitachi ZX450LC-3**Part 4452733 · Pipe No. 6Open full-size diagram

Repair specifications

Part number: 4452733
Diagram pipe number: 6
Installation route: 液压泵左~液压泵右
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 450 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 10

4270458

Installation route: 液压泵~先导滤芯

Length: 800 mm
Specification: DN12;1SN-8;7MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 17

4316023

Installation route: 液压泵~吸油铁管

Length: 480 mm
Specification: DN25;2SN-16;16.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 4

4635850

Installation route: 液压泵~铁管(液压泵)

Length: 820 mm
Specification: DN19;2SN-12;21.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° heavy-series flangeOriginal Chinese: 90°法兰-重型

View full repair specifications

Diagram Pipe No. 16

4618606

Installation route: 液压泵~先导滤芯

Length: 520 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 19

4636853

Installation route: 液压泵~铁管(液压泵)

Length: 750 mm
Specification: DN25;2SN-16;16.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 23

4636852

Installation route: 液压泵~铁管(液压泵)

Length: 650 mm
Specification: DN19;2SN-12;21.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 4

4637841

Installation route: 液压泵~先导滤芯

Length: 450 mm
Specification: DN25;2SN-16;16.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

4636847

Installation route: 液压泵~分配阀(进油)

Length: 1,650 mm
Specification: DN25;4SH-16;38.8MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: 90° heavy-series flangeOriginal Chinese: 90°法兰-重型

View full repair specifications
