Individual hose record
4402701 Hose Repair Specifications
Excavator · Hitachi · ZX450LC-3 · Grease Lines
Finished length720 mm
Locate this hose

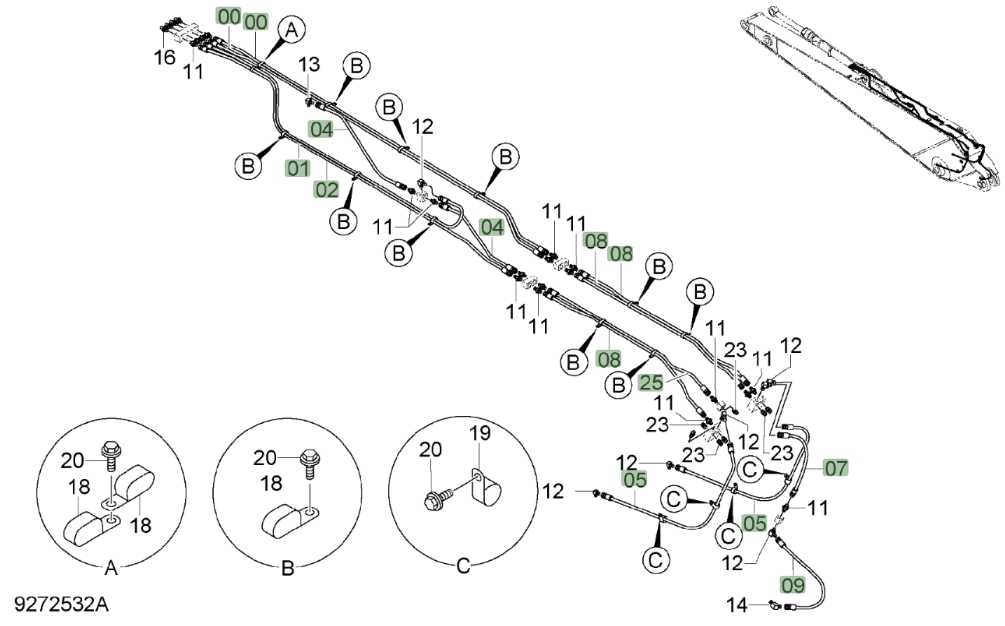

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number 4402701 before removing the hose.
Repair specifications
- Part number
- 4402701
- Diagram pipe number
- 9
- Installation route
- Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管
- Hose specification
- DN6;1SN-4;7MPa
- Finished length
- 720 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
