Individual hose record
KHJ2048 Hose Repair Specifications
Excavator · Case · CX210C NLC · Hydraulic Tank
Finished length750 mm
Locate this hose

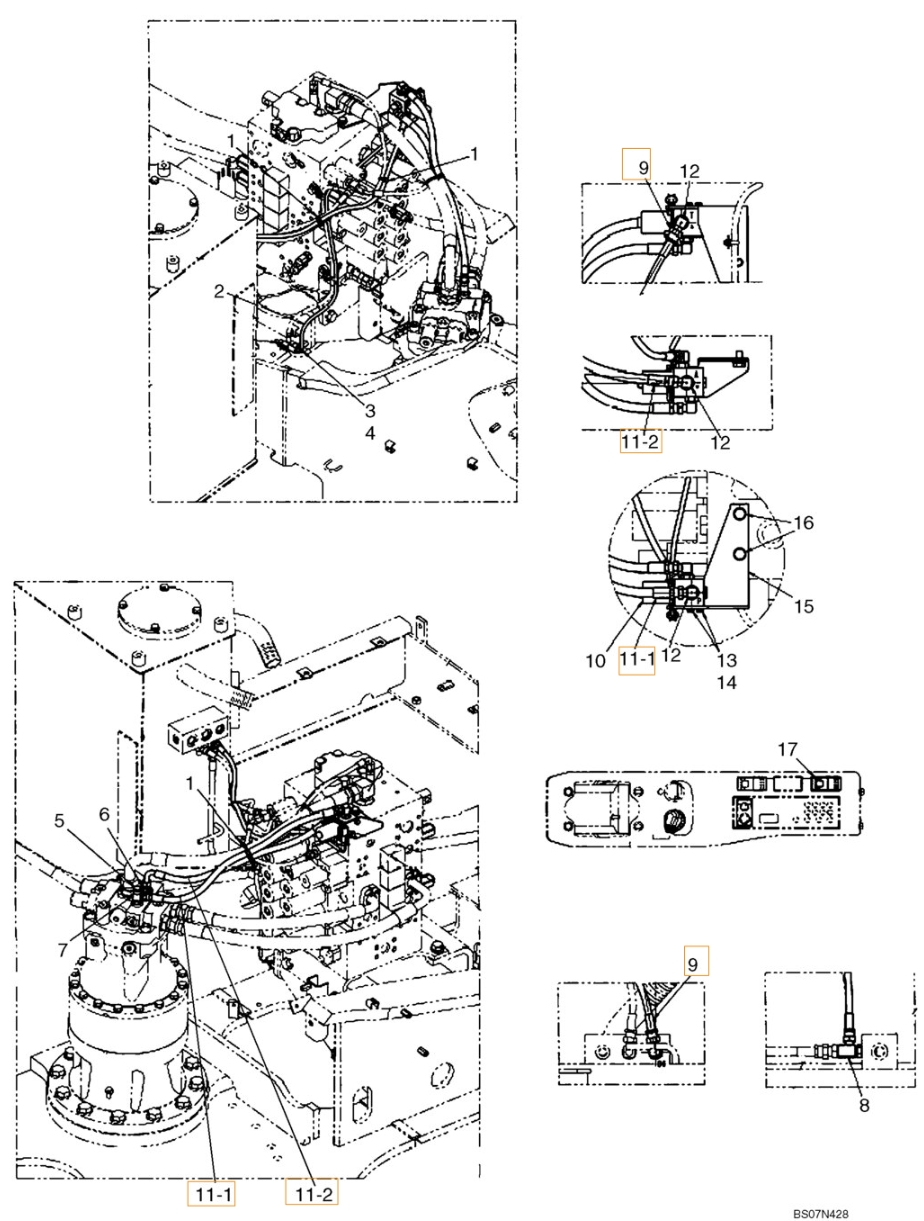

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number KHJ2048 before removing the hose.
Repair specifications
- Part number
- KHJ2048
- Diagram pipe number
- 9
- Installation route
- 液压油箱~电磁阀(分配阀上)
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 750 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
