Individual hose record
730504000736 Hose Repair Specifications
Excavator · Sunward · SWE150W · Swivel Joint
Finished length1,500 mm
Locate this hose

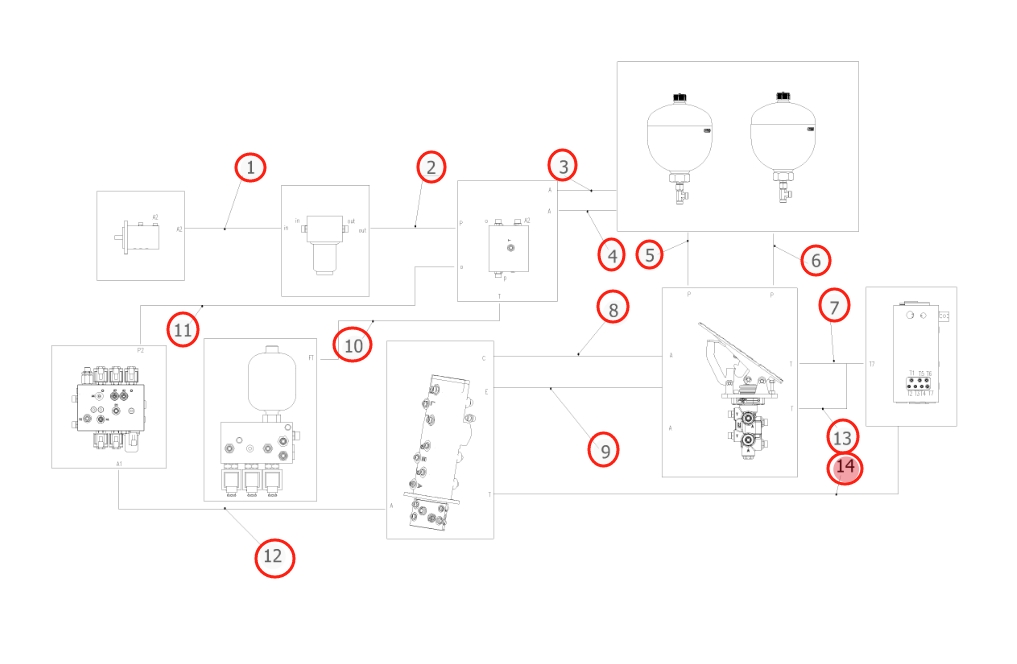

Installation diagram — Pipe No. 14
Locate Pipe No. 14 in the diagram, then confirm part number 730504000736 before removing the hose.
Repair specifications
- Part number
- 730504000736
- Diagram pipe number
- 14
- Installation route
- 回转接头T~液压油箱T7
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,500 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
