Individual hose record
73050200D865 Hose Repair Specifications
Excavator · Sunward · SWE150W · Swivel Joint
Finished length1,180 mm
Locate this hose

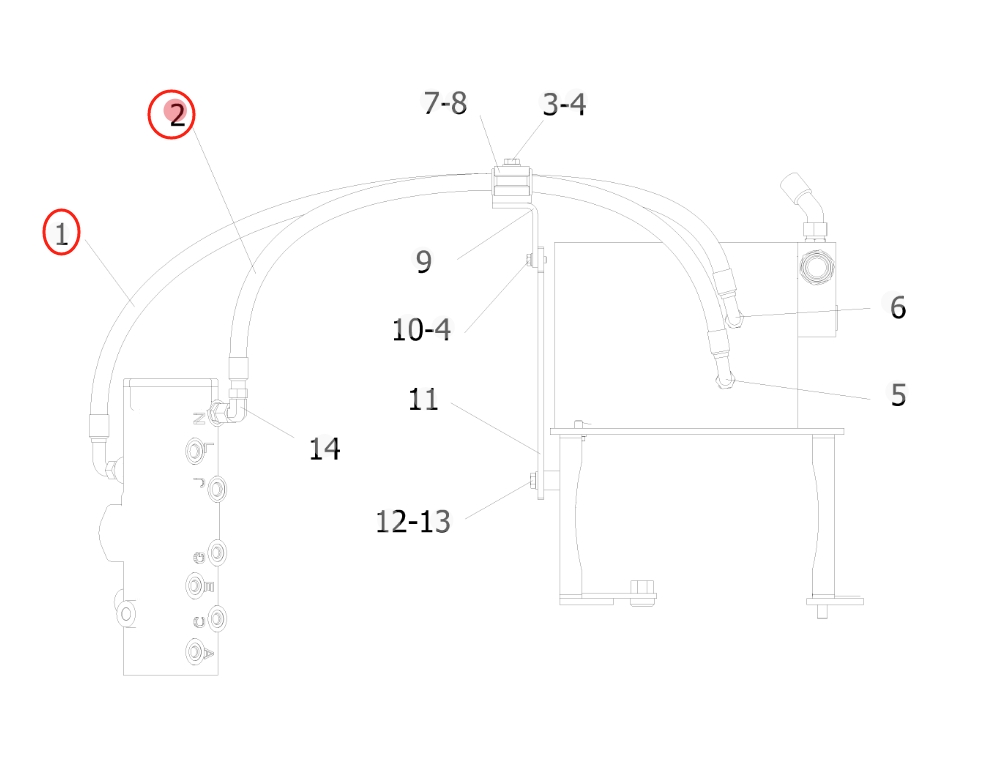

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 73050200D865 before removing the hose.
Repair specifications
- Part number
- 73050200D865
- Diagram pipe number
- 2
- Installation route
- 回转接头~分配阀
- Hose specification
- DN12;3SN-08;41.5MPa
- Finished length
- 1,180 mm
- Working pressure
- 41.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-重型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-重型
- Quantity
- 1
Same system
Related Hoses
- Length
- 1,550 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Length
- 530 mm
- Specification
- DN10;2SN-06;35MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 45°公制内螺纹24°锥带O形圈-轻型
- Length
- 1,100 mm
- Specification
- DN10;1SN-06;20.7MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Length
- 1,320 mm
- Specification
- DN20;6SH-12;35MPa
- Left fitting
- 90°公制内螺纹24°锥带O形圈-重型
- Right fitting
- 90° light-series flangeOriginal Chinese: 90°法兰-轻型
- Length
- 670 mm
- Specification
- DN16;1SN-10;13.8MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Length
- 500 mm
- Specification
- DN8;1SN-05;22.5MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Length
- 1,320 mm
- Specification
- DN20;6SH-12;35MPa
- Left fitting
- 90°公制内螺纹24°锥带O形圈-重型
- Right fitting
- 90° light-series flangeOriginal Chinese: 90°法兰-轻型
