Individual hose record

DS2016061 Hose Repair Specifications

Excavator · Doosan · DX140W · Boom Assembly

Finished length700 mm

Locate this hose

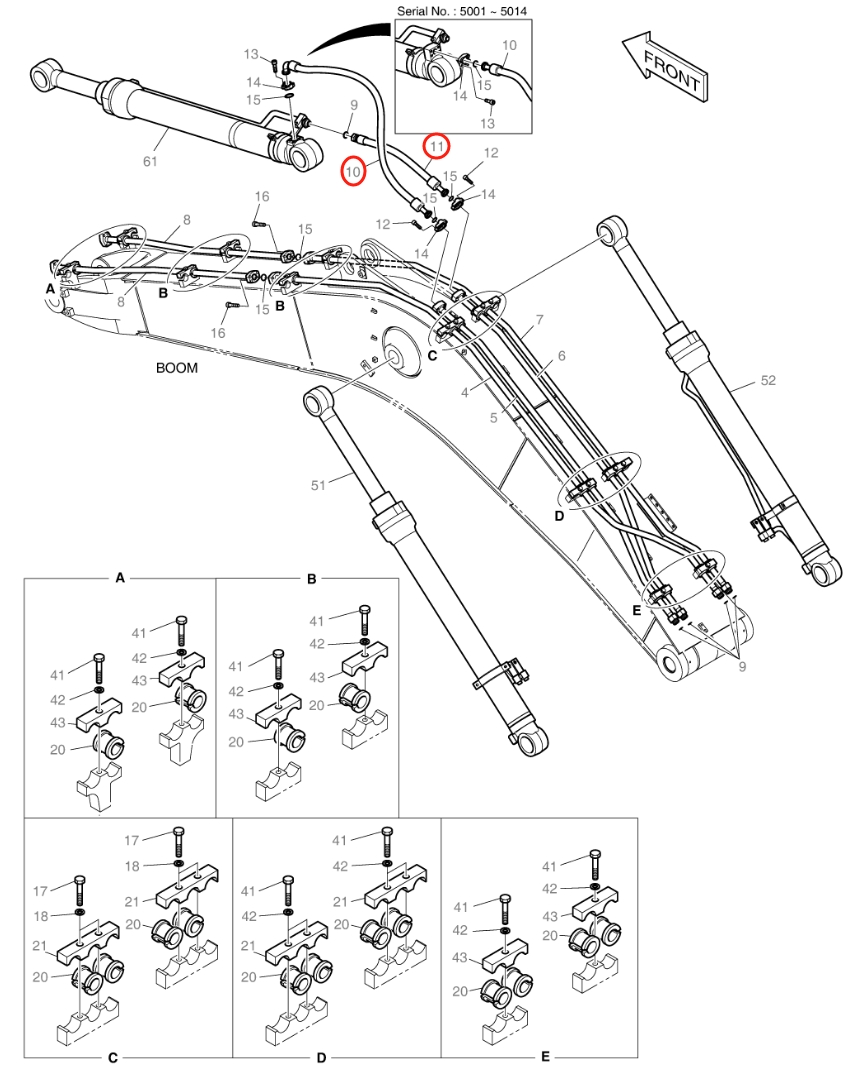

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number DS2016061 before removing the hose.

Part number: DS2016061
Diagram pipe number: 11
Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右
Hose specification: DN19;4SH-12;42MPa
Finished length: 700 mm
Working pressure: 42 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Quantity: 1

Same system

Hose record

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length: 700 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: Light-series flangeOriginal Chinese: 法兰-轻型

Hose record

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Diagram Pipe No. 10

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左
