Individual hose record

KHJ2291 Hose Repair Specifications

Excavator · Case · CX210C LR · Hydraulic Tank

Finished length240 mm

Locate this hose

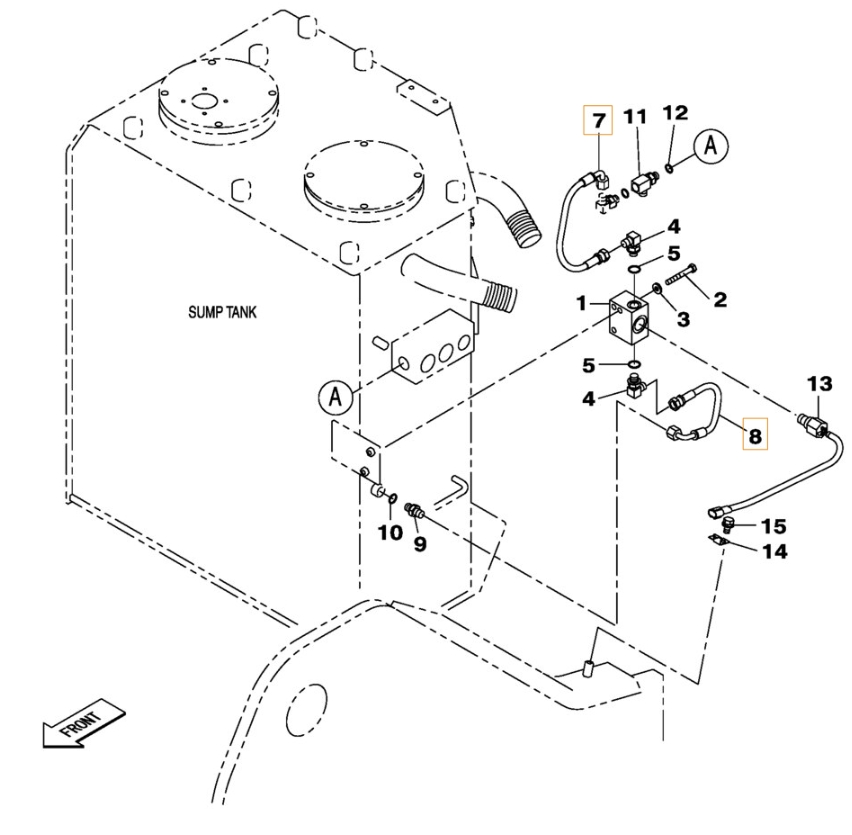

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number KHJ2291 before removing the hose.

Part number: KHJ2291
Diagram pipe number: 8
Installation route: 液压油箱下~液压油箱接块
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 240 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 7

Installation route: 液压油箱上~液压油箱接块

Length: 320 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 11

Installation route: 液压油箱~回转马达上

Length: 550 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 51

Installation route: 液压油箱~电磁阀

Length: 1,250 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
