Individual hose record

DS2093193 Hose Repair Specifications

Excavator · Doosan · DX140LC · Attachments – Breaker

Finished length1,050 mm

Locate this hose

Installation diagram — Pipe No. 22

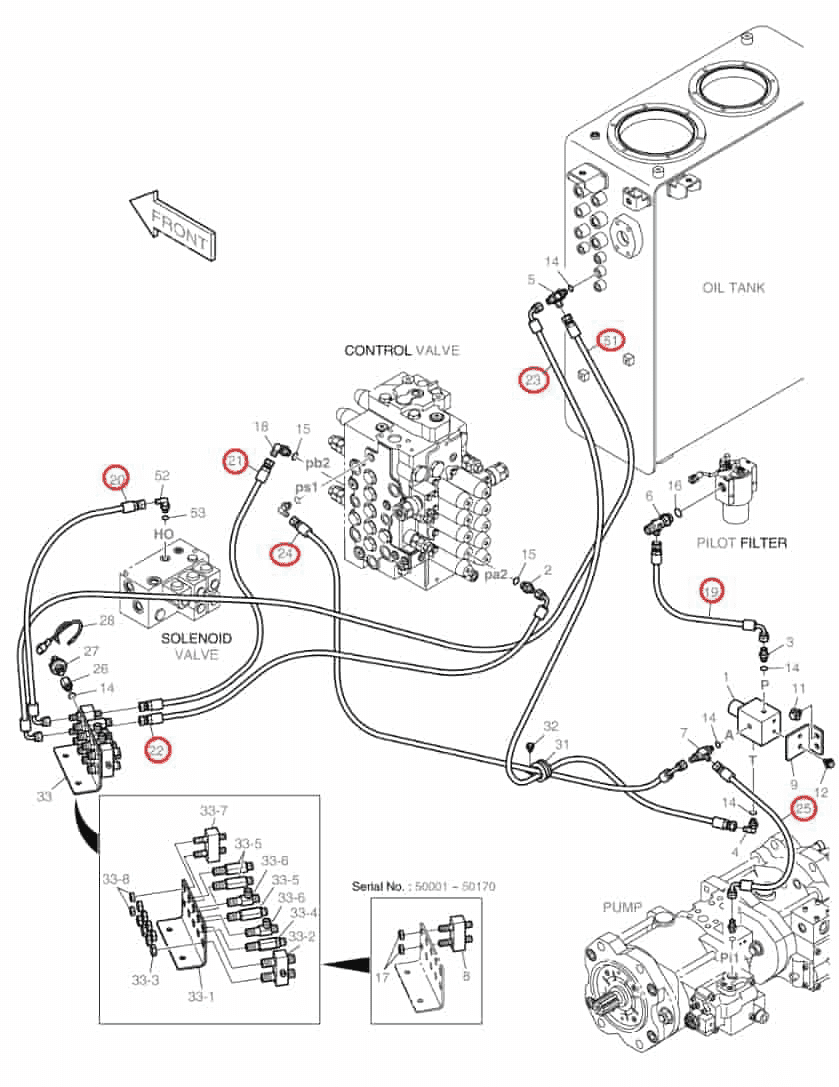

Locate Pipe No. 22 in the diagram, then confirm part number DS2093193 before removing the hose.

Doosan DX140LC installation diagram showing hydraulic hose DS2093193 at Pipe No. 22 — **Doosan DX140LC**Part DS2093193 · Pipe No. 22Open full-size diagram

Repair specifications

Part number: DS2093193
Diagram pipe number: 22
Installation route: 中转接头~分配阀PA2口
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,050 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 16

DS2094122

Installation route: 右电磁阀(破碎器)~电磁阀P4口

Length: 1,250 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 13

DS2093200

Installation route: Breaker pedal port T → return valveOriginal Chinese: 破碎器踏板T口~回油阀

Length: 520 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 12

DS2093373

Installation route: 左过渡阀块(破碎器)X口~右电磁阀(破碎器)T口

Length: 1,800 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 21

DS2093056

Installation route: 破碎器踏板~电磁阀(破碎器)

Length: 1,300 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 13

DS2094044

Installation route: 右过渡阀块(破碎器)X口~电磁阀BS口

Length: 1,440 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 19

DS2093123

Installation route: EPPR阀P口~液压油过滤器

Length: 490 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 17

DS2093080

Installation route: 左电磁阀(破碎器)~回油阀

Length: 810 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 2

DS2093102

Installation route: 破碎器踏板~分节油缸踏板

Length: 430 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications
