Individual hose record

DS2093056 Hose Repair Specifications

Excavator · Doosan · DX140LC · Attachments – Breaker

Finished length1,300 mm

Locate this hose

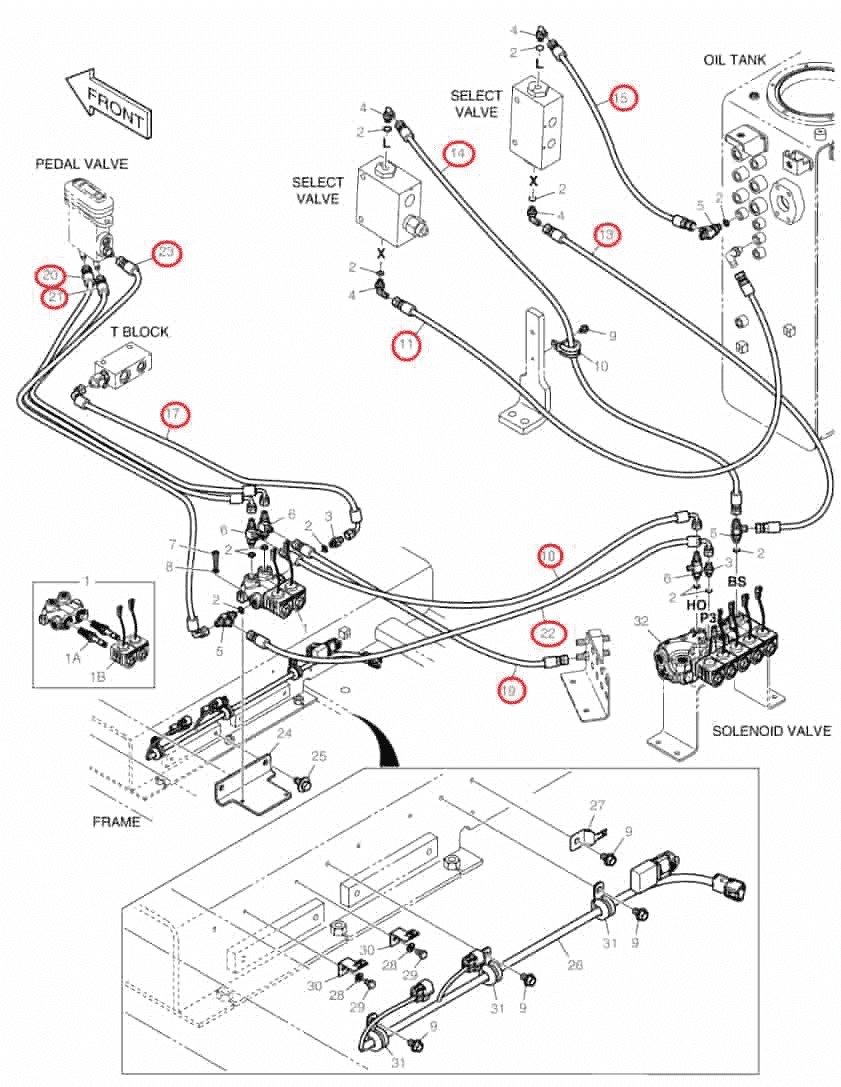

Installation diagram — Pipe No. 21

Locate Pipe No. 21 in the diagram, then confirm part number DS2093056 before removing the hose.

Doosan DX140LC installation diagram showing hydraulic hose DS2093056 at Pipe No. 21 — **Doosan DX140LC**Part DS2093056 · Pipe No. 21Open full-size diagram

Repair specifications

Part number: DS2093056
Diagram pipe number: 21
Installation route: 破碎器踏板~电磁阀(破碎器)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,300 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
