730501005916 Hose Repair Specifications

Excavator · Sunward · SWE500ES · Fuel Lines

Finished length250 mm

Locate this hose

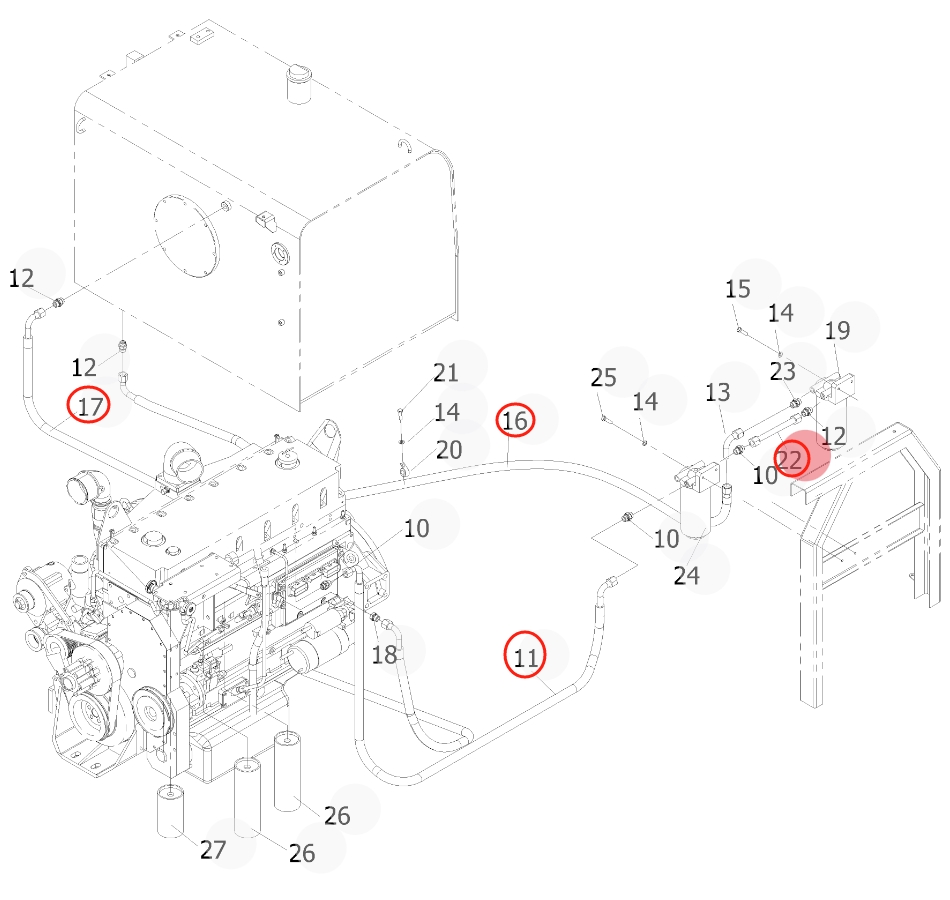

Installation diagram — Pipe No. 22

Locate Pipe No. 22 in the diagram, then confirm part number 730501005916 before removing the hose.

Sunward SWE500ES installation diagram showing hydraulic hose 730501005916 at Pipe No. 22 — Sunward SWE500ESPart 730501005916 · Pipe No. 22Open full-size diagram

Repair specifications

Part number: 730501005916
Diagram pipe number: 22
Installation route: 燃油滤芯~油水分离器
Hose specification: DN12;1SN-08;17.2MPa
Finished length: 250 mm
Working pressure: 17.2 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型
Quantity: 1
