Individual hose record

4441941 Hose Repair Specifications

Excavator · Hitachi · ZX75US · Supply and Return Valve

Finished length1,870 mm

Locate this hose

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 4441941 before removing the hose.

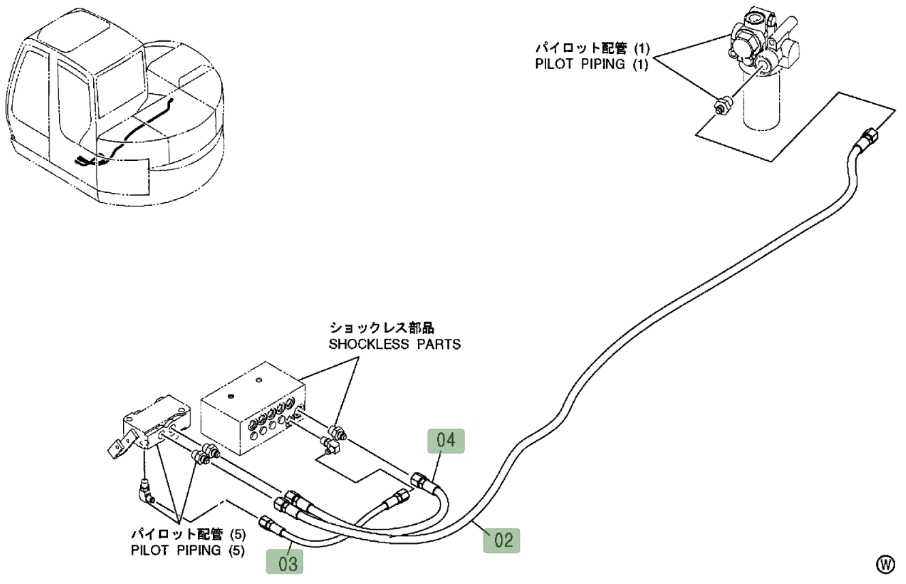

Hitachi ZX75US installation diagram showing hydraulic hose 4441941 at Pipe No. 2 — Hitachi ZX75USPart 4441941 · Pipe No. 2Open full-size diagram

Repair specifications

Part number: 4441941
Diagram pipe number: 2
Installation route: 进回油阀~先导滤芯
Hose specification: DN10;1SN-6;18MPa
Finished length: 1,870 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥双六角
Right fitting: 美制内螺纹74°内锥双六角
Quantity: 1
