- Length
- 350 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
Individual hose record
4715797 Hose Repair Specifications
Excavator · Hitachi · ZX870LC-5A · Solenoid Valve
Finished length380 mm
Locate this hose

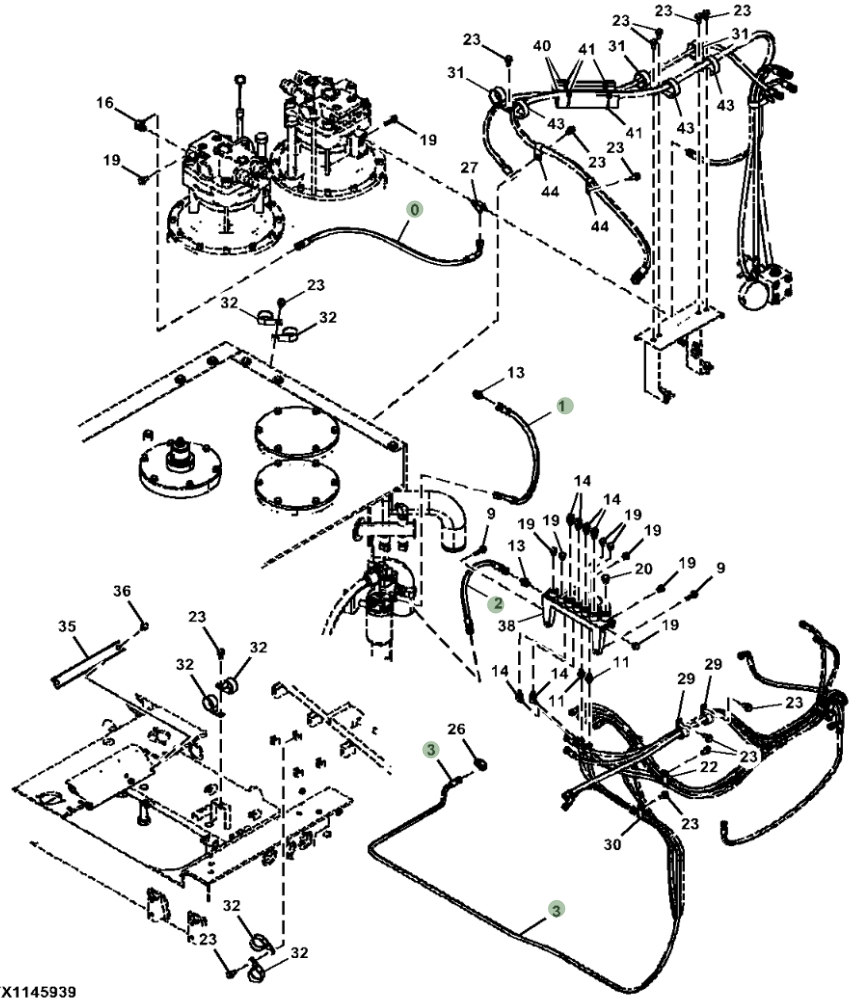

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 4715797 before removing the hose.
Repair specifications
- Part number
- 4715797
- Diagram pipe number
- 2
- Installation route
- 电磁阀(液压油箱)~先导滤芯
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 380 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
