DS2012424 Hose Repair Specifications

Excavator · Doosan · DX160LC-3 · Attachments

Finished length1,750 mm

Locate this hose

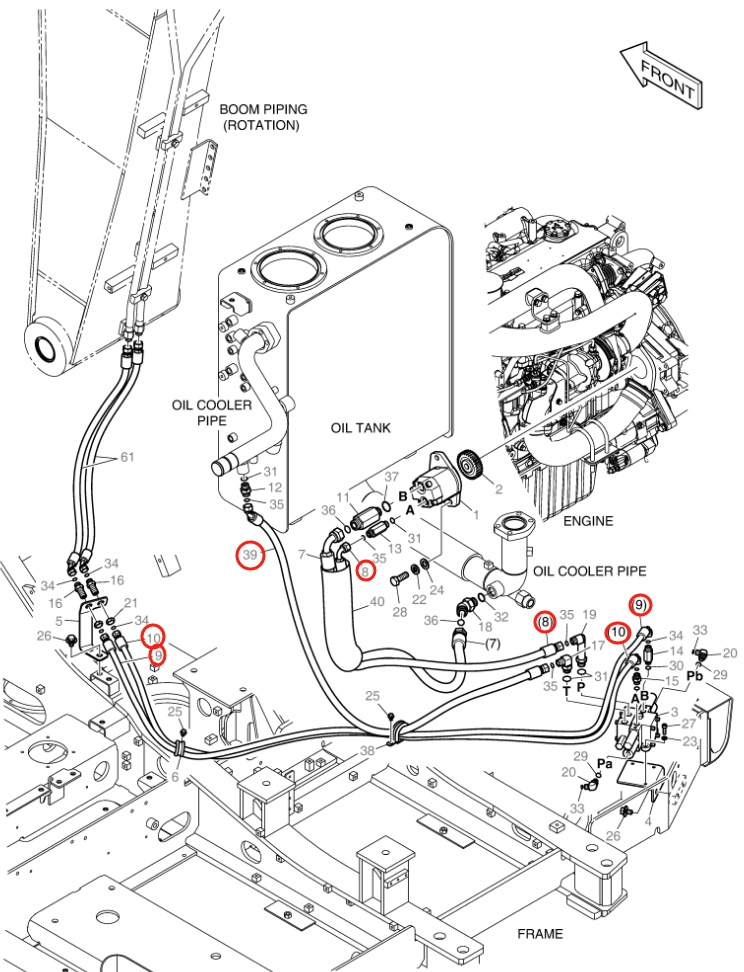

Installation diagram — Pipe No. 39

Locate Pipe No. 39 in the diagram, then confirm part number DS2012424 before removing the hose.

Part number: DS2012424
Diagram pipe number: 39
Installation route: 控制阀T口~回油铁管(液压油箱)
Hose specification: DN13;1SN-08;16MPa
Finished length: 1,750 mm
Working pressure: 16 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 45°美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 14

Installation route: 大臂缓冲阀T2口~液压油箱

Length: 1,160 mm
Specification: DN10;1SN-06;18MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 1

Installation route: 推土铲手柄1口~分配阀PRB2口

Length: 2,960 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 1

Installation route: 中转接头B1口~大臂缓冲阀P口

Length: 1,590 mm
Specification: DN10;1SN-06;18MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 24

Installation route: 分节油缸踏板P口~进回油阀P口

Length: 290 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 45°美制内螺纹平面密封
