Individual hose record

4269832 Hose Repair Specifications

Excavator · Hitachi · ZX135US-3 · Attachments

Finished length400 mm

Locate this hose

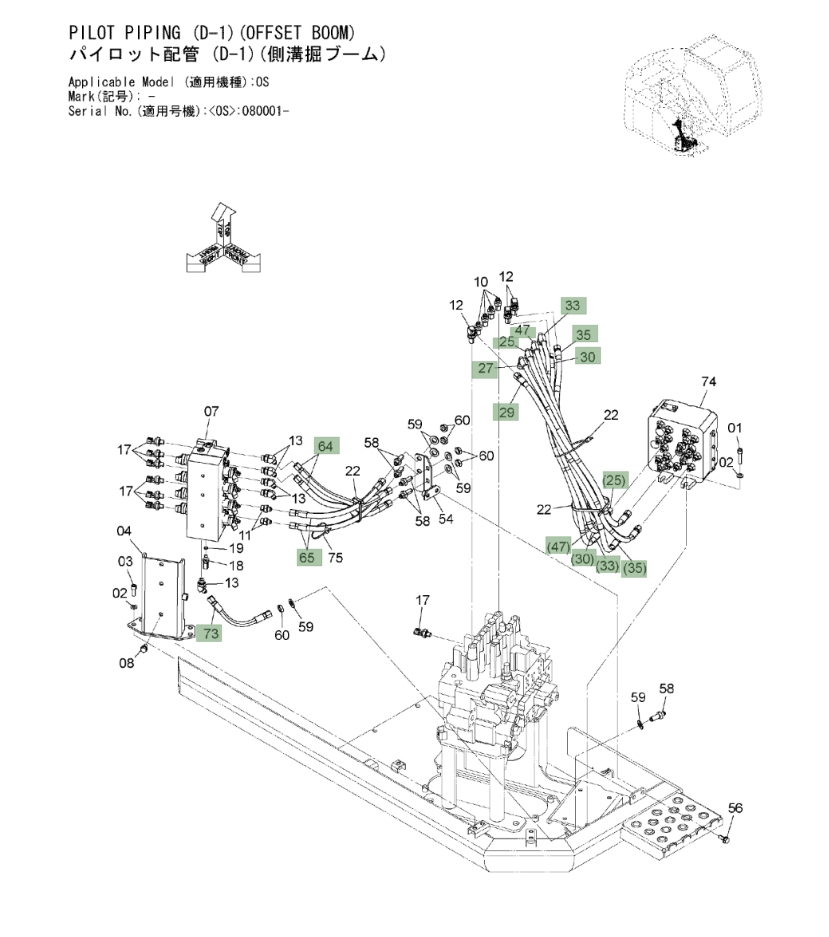

Installation diagram — Pipe No. 65A

Locate Pipe No. 65A in the diagram, then confirm part number 4269832 before removing the hose.

Hitachi ZX135US-3 installation diagram showing hydraulic hose 4269832 at Pipe No. 65A — Hitachi ZX135US-3Part 4269832 · Pipe No. 65AOpen full-size diagram

Repair specifications

Part number: 4269832
Diagram pipe number: 65A
Installation route: 过渡阀块(中转接头)~接线板
Hose specification: DN10;1SN-6;7Mpa
Finished length: 400 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 24A

4684180

Installation route: 过渡阀块(进回油阀)~过渡阀块(中转接头)

Length: 3,350 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 7

4670633

Installation route: 中转接头~过渡阀块(流速切换)

Length: 750 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 69

4674819

Installation route: 控制阀(辅助)~过渡阀块

Length: 430 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 31A

4669601

Installation route: 中转接头~过渡阀块(隔板)

Length: 500 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 15

4669353

Installation route: 推土铲手柄~过渡阀块(推土铲)

Length: 1,450 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 64A

4613763

Installation route: 过渡阀块(中转接头)~接线板

Length: 450 mm
Specification: DN10;1SN-06;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 68

4470393

Installation route: 控制阀(辅助)~过渡阀块(辅助)

Length: 350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 25A

4683498

Installation route: 大臂(辅助)~接线板(大臂下)

Length: 800 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
