Individual hose record
DS20131882 Hose Repair Specifications
Excavator · Doosan · DX140LCR-5 · Hydraulic Pump
Finished length1,580 mm
Locate this hose

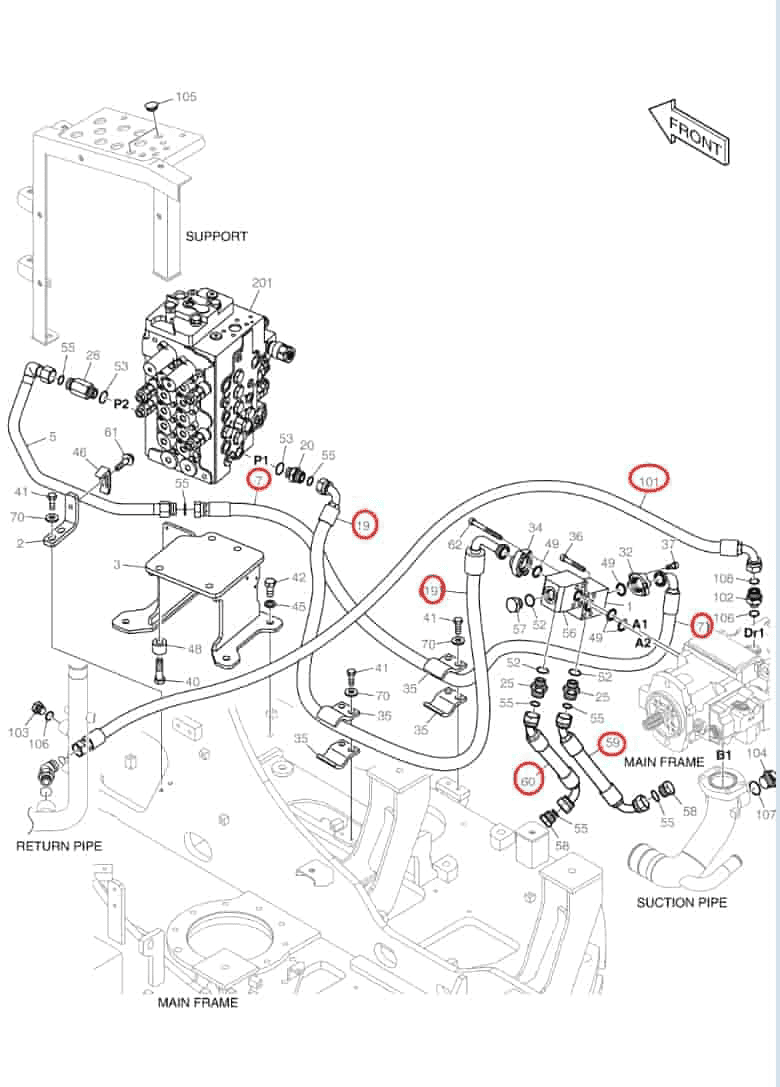

Installation diagram — Pipe No. 101
Locate Pipe No. 101 in the diagram, then confirm part number DS20131882 before removing the hose.
Repair specifications
- Part number
- DS20131882
- Diagram pipe number
- 101
- Installation route
- 液压泵DR1口~回油铁管(液压油箱)
- Hose specification
- DN19;1SN-12;10.5MPa
- Finished length
- 1,580 mm
- Working pressure
- 10.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
