Individual hose record
73050200A078 Hose Repair Specifications
Excavator · Sunward · SWE155F · Control Valve
Finished length560 mm
Locate this hose

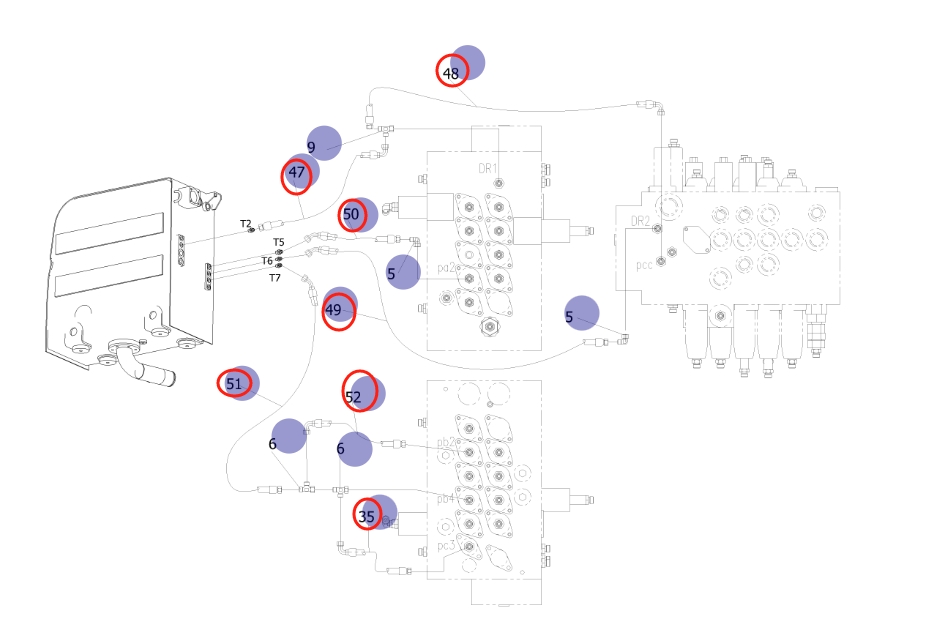

Installation diagram — Pipe No. 51
Locate Pipe No. 51 in the diagram, then confirm part number 73050200A078 before removing the hose.
Repair specifications
- Part number
- 73050200A078
- Diagram pipe number
- 51
- Installation route
- 分配阀PB4~液压油箱T7
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 560 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 45°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
