Individual hose record
730502001418 Hose Repair Specifications
Excavator · Sunward · SWE155F · Control Valve
Finished length1,600 mm
Locate this hose

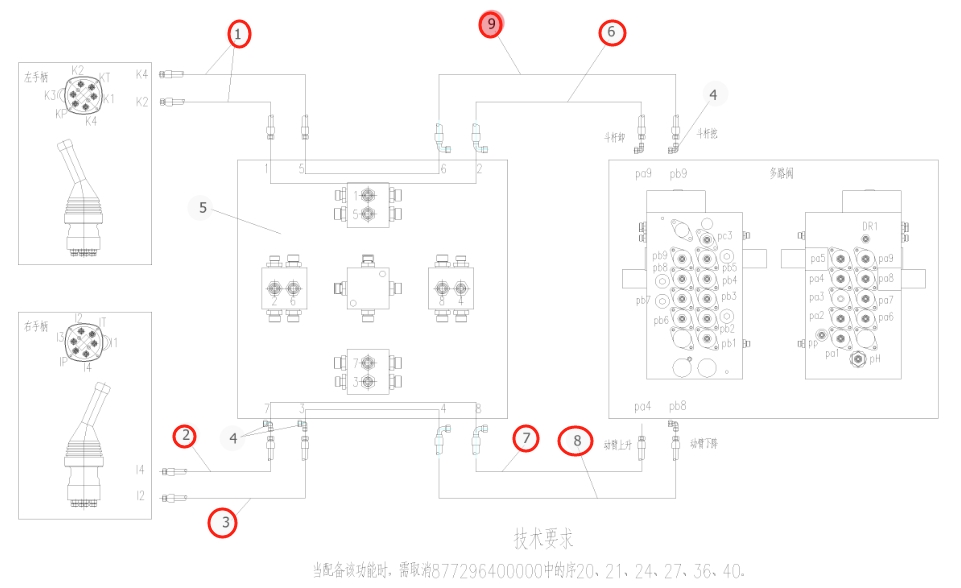

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number 730502001418 before removing the hose.
Repair specifications
- Part number
- 730502001418
- Diagram pipe number
- 9
- Installation route
- 分配阀前PB9~模式切换阀6
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,600 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
