Diagram Pipe No. 2
4313443
Installation route: Swing motor → return steel line (hydraulic tank)Original Chinese: 回转马达~回油铁管(液压油箱)
- Length
- 2,500 mm
- Specification
- DN13;1SN-08;16MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
Individual hose record
4453966 Hose Repair Specifications
Excavator · Hitachi · ZX600LC · Swing Motor
Finished length480 mm
Locate this hose

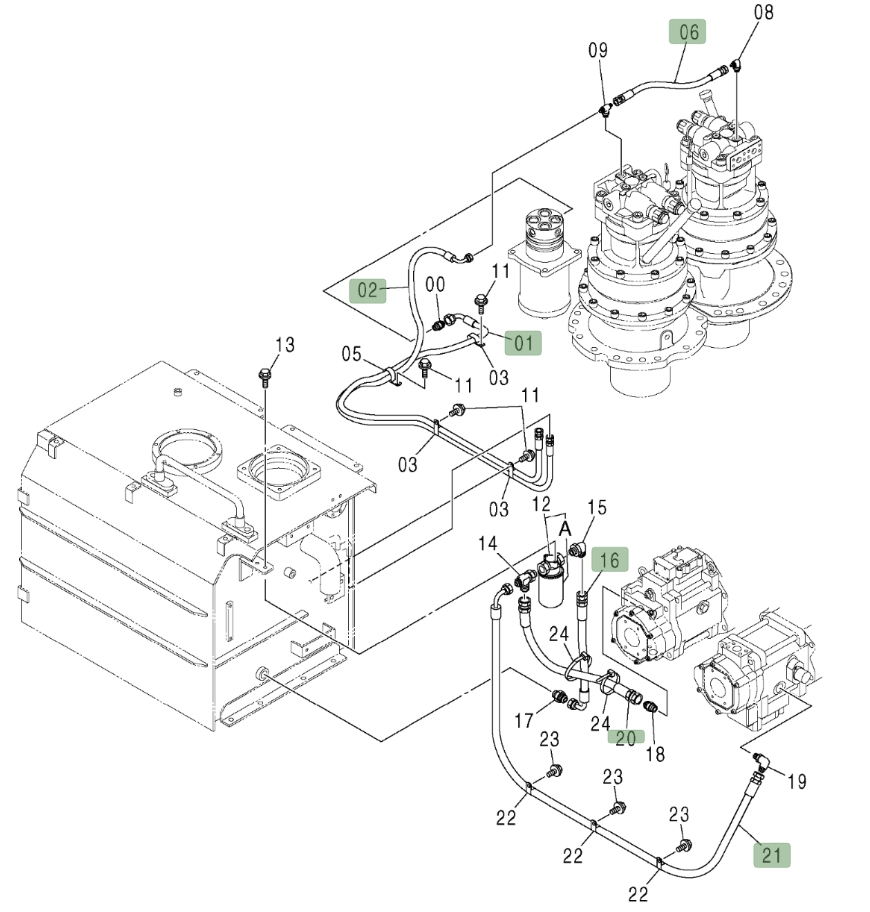

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 4453966 before removing the hose.
Repair specifications
- Part number
- 4453966
- Diagram pipe number
- 6
- Installation route
- 回转马达(左)~回转马达(右)
- Hose specification
- DN12;4层纤维-8;3.5MPa
- Finished length
- 480 mm
- Working pressure
- 3.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
Same system
Related Hoses
- Length
- 550 mm
- Specification
- DN6;1SN-4;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
