Individual hose record

9155424 Hose Repair Specifications

Excavator · Hitachi · EX200LC-5 · Control Valve

Finished length1,900 mm

Locate this hose

Installation diagram — Pipe No. 3

Locate Pipe No. 3 in the diagram, then confirm part number 9155424 before removing the hose.

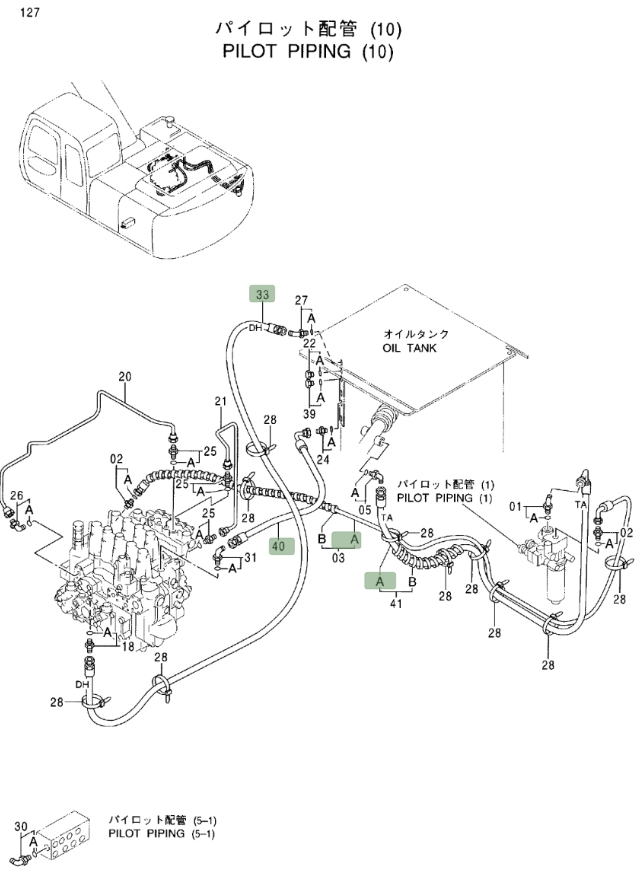

Hitachi EX200LC-5 installation diagram showing hydraulic hose 9155424 at Pipe No. 3 — Hitachi EX200LC-5Part 9155424 · Pipe No. 3Open full-size diagram

Repair specifications

Part number: 9155424
Diagram pipe number: 3
Installation route: 分配阀右~先导滤芯
Hose specification: DN10;1SN-06;18MPa
Finished length: 1,900 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 03A

4376587

Installation route: 分配阀右~先导滤芯

Length: 1,900 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications
