9153595 Hose Repair Specifications

Excavator · Hitachi · EX200LC-5 · Control Valve

Finished length1,600 mm

Locate this hose

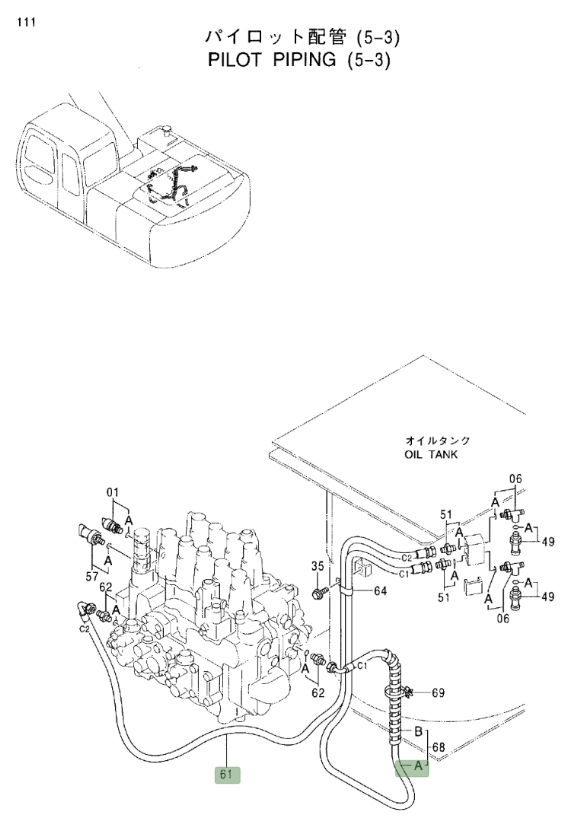

Installation diagram — Pipe No. 68

Locate Pipe No. 68 in the diagram, then confirm part number 9153595 before removing the hose.

Hitachi EX200LC-5 installation diagram showing hydraulic hose 9153595 at Pipe No. 68 — Hitachi EX200LC-5Part 9153595 · Pipe No. 68Open full-size diagram

Repair specifications

Part number: 9153595
Diagram pipe number: 68
Installation route: 分配阀后~液压油箱
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,600 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 3

9155424

Installation route: 分配阀右~先导滤芯

Length: 1,900 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 03A

4376587

Installation route: 分配阀右~先导滤芯

Length: 1,900 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 61

4361042

Installation route: 分配阀前~液压油箱

Length: 1,650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 22

4332934

Installation route: 分配阀上~电磁阀

Length: 400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 33

4349806

Installation route: 分配阀左~液压油箱

Length: 1,450 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications
