Individual hose record

4245115 Hose Repair Specifications

Excavator · Hitachi · ZX470LC-6 · Hydraulic Pump

Finished length350 mm

Locate this hose

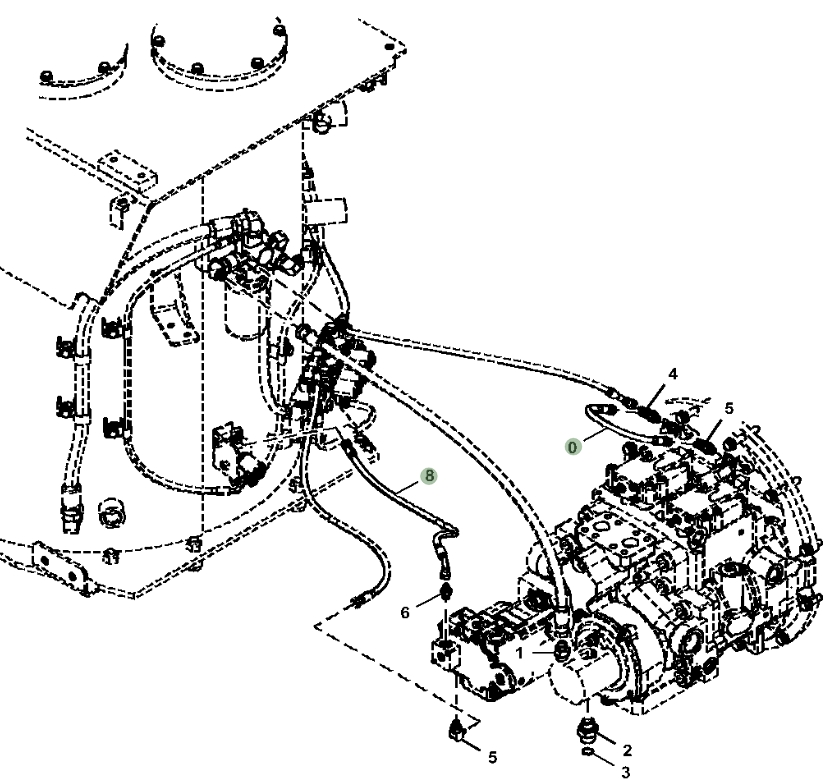

Installation diagram — Pipe No. 0

Locate Pipe No. 0 in the diagram, then confirm part number 4245115 before removing the hose.

Hitachi ZX470LC-6 installation diagram showing hydraulic hose 4245115 at Pipe No. 0 — Hitachi ZX470LC-6Part 4245115 · Pipe No. 0Open full-size diagram

Repair specifications

Part number: 4245115
Diagram pipe number: 0
Installation route: 液压泵左~液压泵右
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 350 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 15

4644625

Installation route: 液压泵~吸油铁管

Length: 680 mm
Specification: DN19;2SN-12;21.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

4286808

Installation route: 液压泵~堵头(减震管)

Length: 600 mm
Specification: DN25;4SH-16;38.8MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 0

4437397

Installation route: 液压泵左~液压泵右

Length: 350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 1

4700647

Installation route: 液压泵~分配阀(进油)

Length: 1,670 mm
Specification: DN32;6SH-20;42MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: 90° heavy-series flangeOriginal Chinese: 90°法兰-重型

View full repair specifications

Diagram Pipe No. 59

4323030

Installation route: 液压泵~先导滤芯

Length: 1,020 mm
Specification: DN12;1SN-08;7Mpa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications
