Individual hose record

4700647 Hose Repair Specifications

Excavator · Hitachi · ZX470LC-6 · Hydraulic Pump

Finished length1,670 mm

Locate this hose

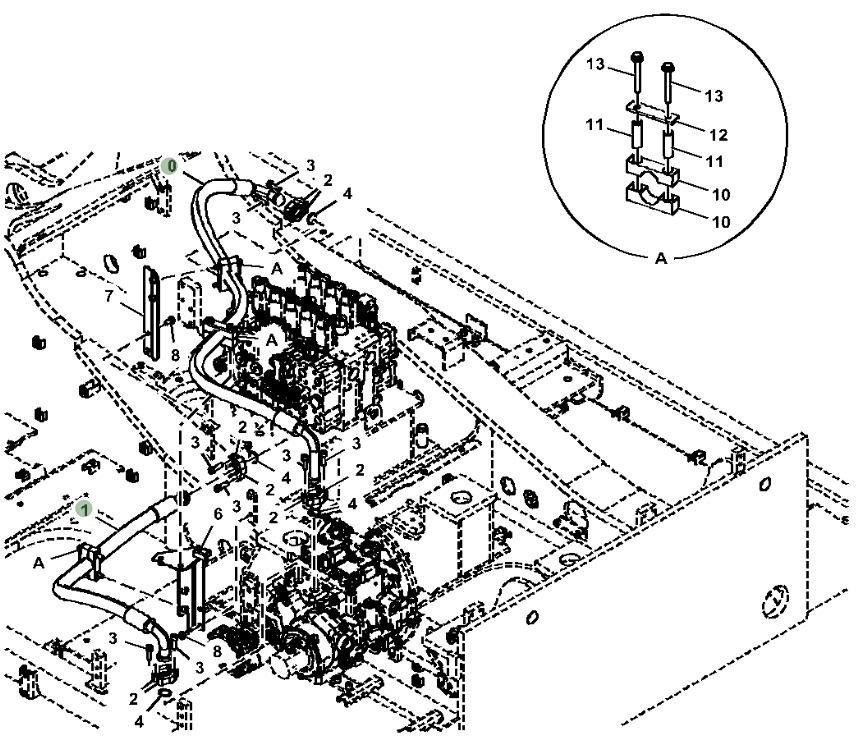

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 4700647 before removing the hose.

Hitachi ZX470LC-6 installation diagram showing hydraulic hose 4700647 at Pipe No. 1 — Hitachi ZX470LC-6Part 4700647 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 4700647
Diagram pipe number: 1
Installation route: 液压泵~分配阀(进油)
Hose specification: DN32;6SH-20;42MPa
Finished length: 1,670 mm
Working pressure: 42 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: 90° heavy-series flangeOriginal Chinese: 90°法兰-重型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 0

4245115

Installation route: 液压泵左~液压泵右

Length: 350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 15

4644625

Installation route: 液压泵~吸油铁管

Length: 680 mm
Specification: DN19;2SN-12;21.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

4286808

Installation route: 液压泵~堵头(减震管)

Length: 600 mm
Specification: DN25;4SH-16;38.8MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 0

4437397

Installation route: 液压泵左~液压泵右

Length: 350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 59

4323030

Installation route: 液压泵~先导滤芯

Length: 1,020 mm
Specification: DN12;1SN-08;7Mpa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications
