Individual hose record
4437794 Hose Repair Specifications
Excavator · Hitachi · ZX330LC · Control Valve
Finished length3,150 mm
Locate this hose

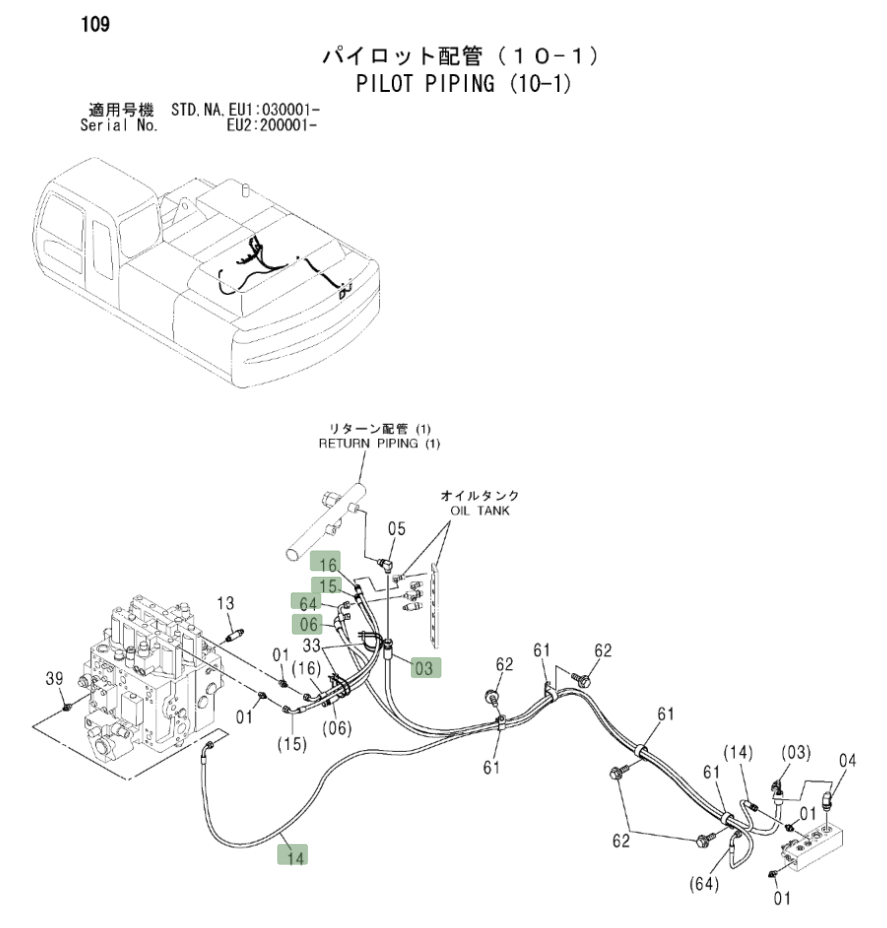

Installation diagram — Pipe No. 14
Locate Pipe No. 14 in the diagram, then confirm part number 4437794 before removing the hose.
Repair specifications
- Part number
- 4437794
- Diagram pipe number
- 14
- Installation route
- 分配阀左~电磁阀(液压泵)
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 3,150 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
