Individual hose record

730502000092 Hose Repair Specifications

Excavator · Sunward · SWE155E · Swing Motor

Finished length350 mm

Locate this hose

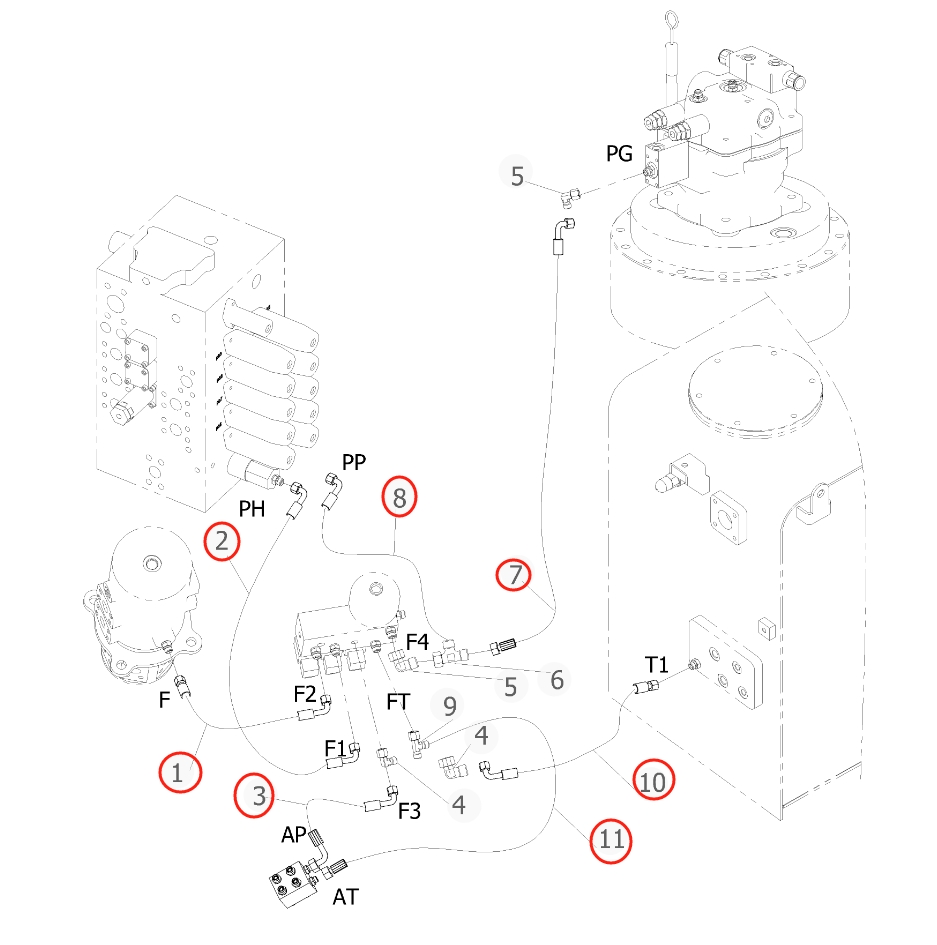

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 730502000092 before removing the hose.

Sunward SWE155E installation diagram showing hydraulic hose 730502000092 at Pipe No. 7 — Sunward SWE155EPart 730502000092 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: 730502000092
Diagram pipe number: 7
Installation route: 回转马达PG~电磁阀(蓄能器)F4
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 350 mm
Working pressure: 22.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1
