- Length
- 350 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
Individual hose record
73050200A081 Hose Repair Specifications
Excavator · Sunward · SWE155E · Swing Motor
Finished length610 mm
Locate this hose

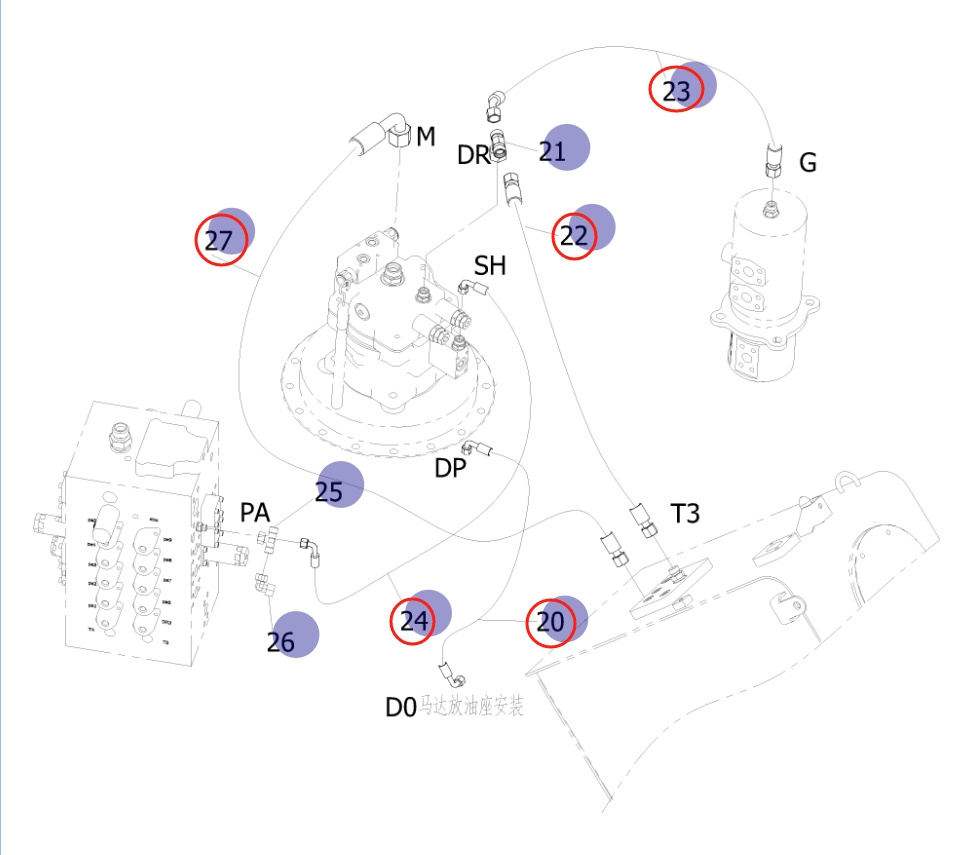

Installation diagram — Pipe No. 27
Locate Pipe No. 27 in the diagram, then confirm part number 73050200A081 before removing the hose.
Repair specifications
- Part number
- 73050200A081
- Diagram pipe number
- 27
- Installation route
- 回转马达M~液压油箱
- Hose specification
- DN20;1SN-12;12MPa
- Finished length
- 610 mm
- Working pressure
- 12 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 45°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
Same system
Related Hoses
- Length
- 350 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Length
- 410 mm
- Specification
- DN16;1SN-10;13.8MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
