Individual hose record
4661845 Hose Repair Specifications
Excavator · Hitachi · ZX470LC-6 · Control Lever
Finished length3,000 mm
Locate this hose

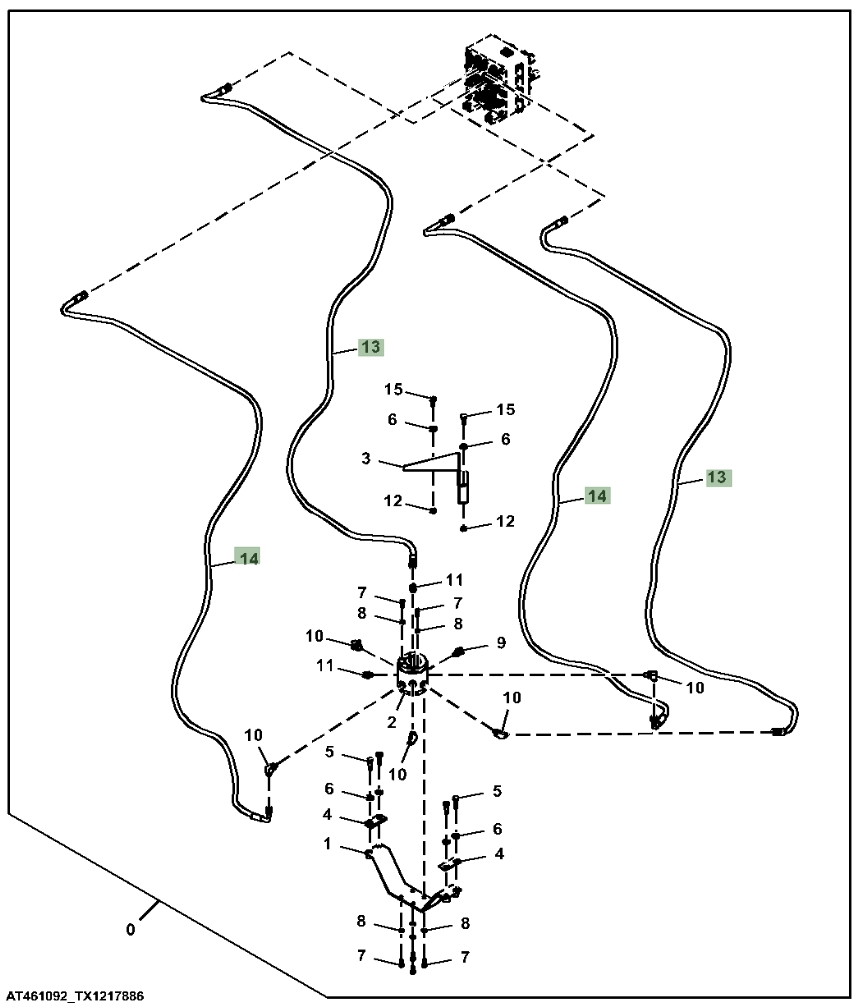

Installation diagram — Pipe No. 13
Locate Pipe No. 13 in the diagram, then confirm part number 4661845 before removing the hose.
Repair specifications
- Part number
- 4661845
- Diagram pipe number
- 13
- Installation route
- 模式转换阀~中转接头
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 3,000 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 2
