Individual hose record
4678903 Hose Repair Specifications
Excavator · Hitachi · ZX470LC-6 · Control Lever
Finished length1,650 mm
Locate this hose

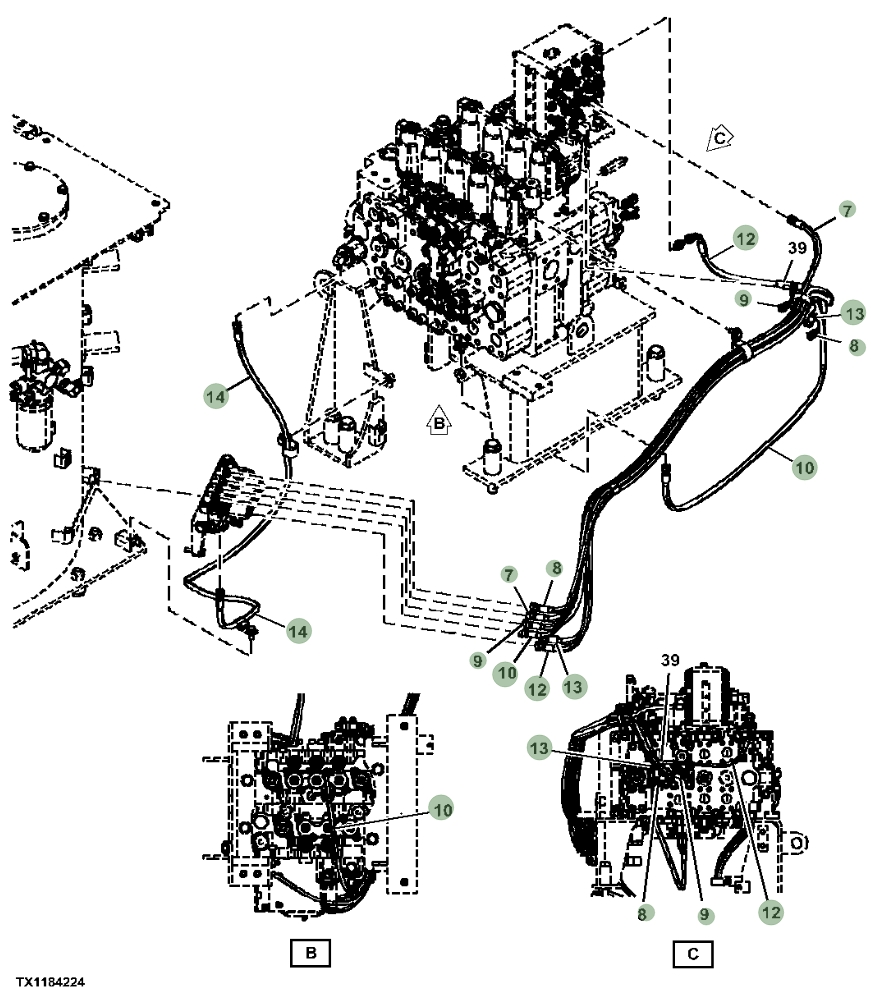

Installation diagram — Pipe No. 7
Locate Pipe No. 7 in the diagram, then confirm part number 4678903 before removing the hose.
Repair specifications
- Part number
- 4678903
- Diagram pipe number
- 7
- Installation route
- 中转接头~电磁阀(液压油箱)
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,650 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
