Individual hose record

4474678 Hose Repair Specifications

Excavator · Hitachi · ZX450LC-3 · Swing Motor

Finished length550 mm

Locate this hose

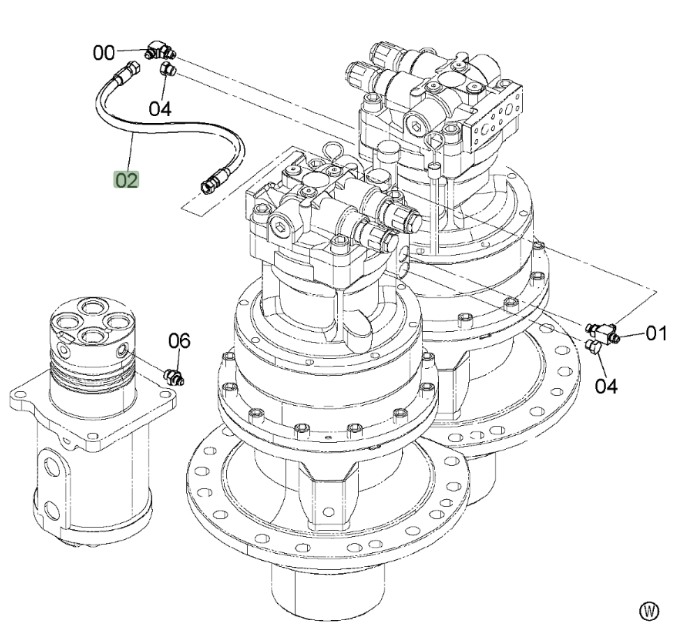

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 4474678 before removing the hose.

Hitachi ZX450LC-3 installation diagram showing hydraulic hose 4474678 at Pipe No. 2 — Hitachi ZX450LC-3Part 4474678 · Pipe No. 2Open full-size diagram

Repair specifications

Part number: 4474678
Diagram pipe number: 2
Installation route: 回转马达(左)~回转马达(右)
Hose specification: DN10;1SN-06;18MPa
Finished length: 550 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1
