Individual hose record

4313166 Hose Repair Specifications

Excavator · Hitachi · ZX450LC-3 · Swing Motor

Finished length1,800 mm

Locate this hose

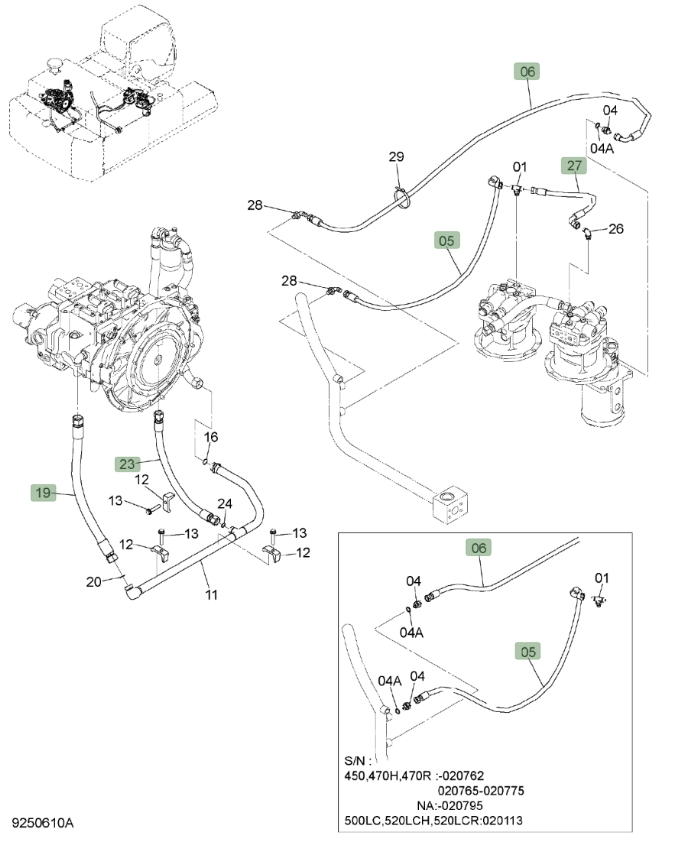

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number 4313166 before removing the hose.

Hitachi ZX450LC-3 installation diagram showing hydraulic hose 4313166 at Pipe No. 5 — Hitachi ZX450LC-3Part 4313166 · Pipe No. 5Open full-size diagram

Repair specifications

Part number: 4313166
Diagram pipe number: 5
Installation route: 回转马达(左)~回油铁管(液压油箱)
Hose specification: DN13;2SN-08;27.5MPa
Finished length: 1,800 mm
Working pressure: 27.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 2

4474678

Installation route: 回转马达(左)~回转马达(右)

Length: 550 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 5

9261691

Installation route: 回转马达(左)~回油铁管(液压油箱)

Length: 1,800 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 27

4313150

Installation route: 回转马达(左)~回转马达(右)

Length: 550 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 33

4651783

Installation route: 回转马达~中转接头

Length: 1,050 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 45°美制内螺纹74°内锥

View full repair specifications
