Individual hose record

KHJ2142 Hose Repair Specifications

Excavator · Case · CX470B · Hydraulic Tank

Finished length500 mm

Locate this hose

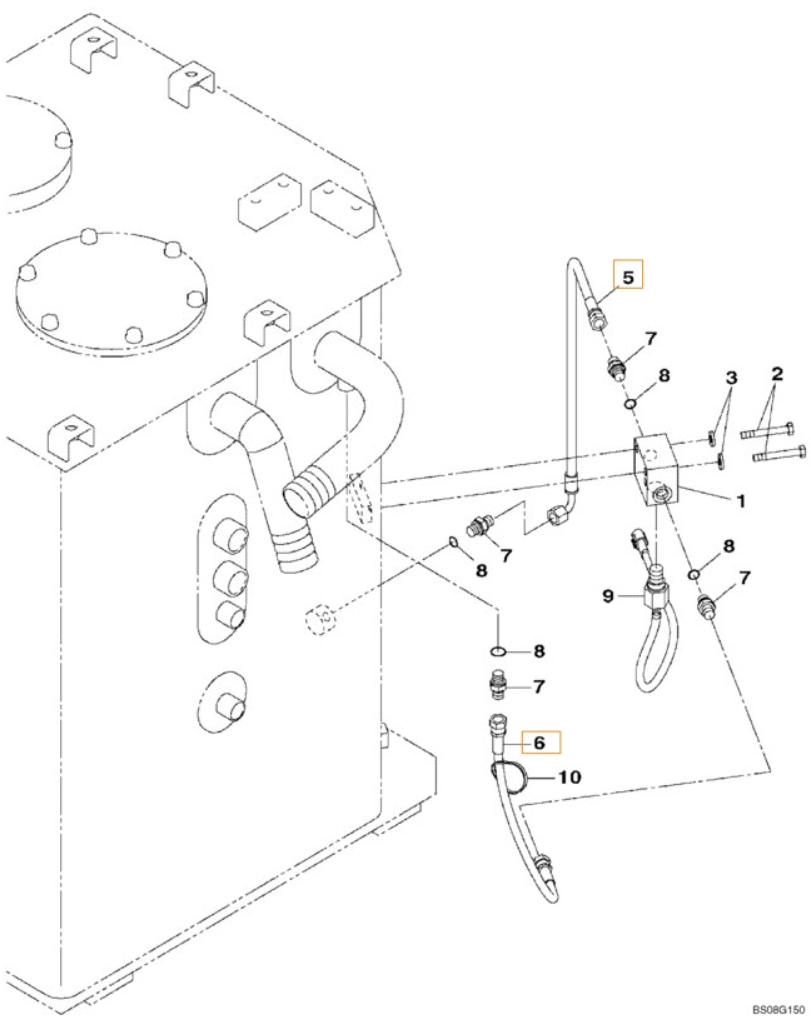

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number KHJ2142 before removing the hose.

Part number: KHJ2142
Diagram pipe number: 6
Installation route: 液压油箱~过渡阀块左(液压油箱)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 500 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 113

Installation route: 液压油箱~风扇马达

Length: 2,000 mm
Specification: DN13;4SH-08;41.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 5

Installation route: 液压油箱~过渡阀块右(液压油箱)

Length: 320 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
