Individual hose record

KHJ11480 Hose Repair Specifications

Excavator · Case · CX245D · Attachments – Breaker

Finished length3,950 mm

Locate this hose

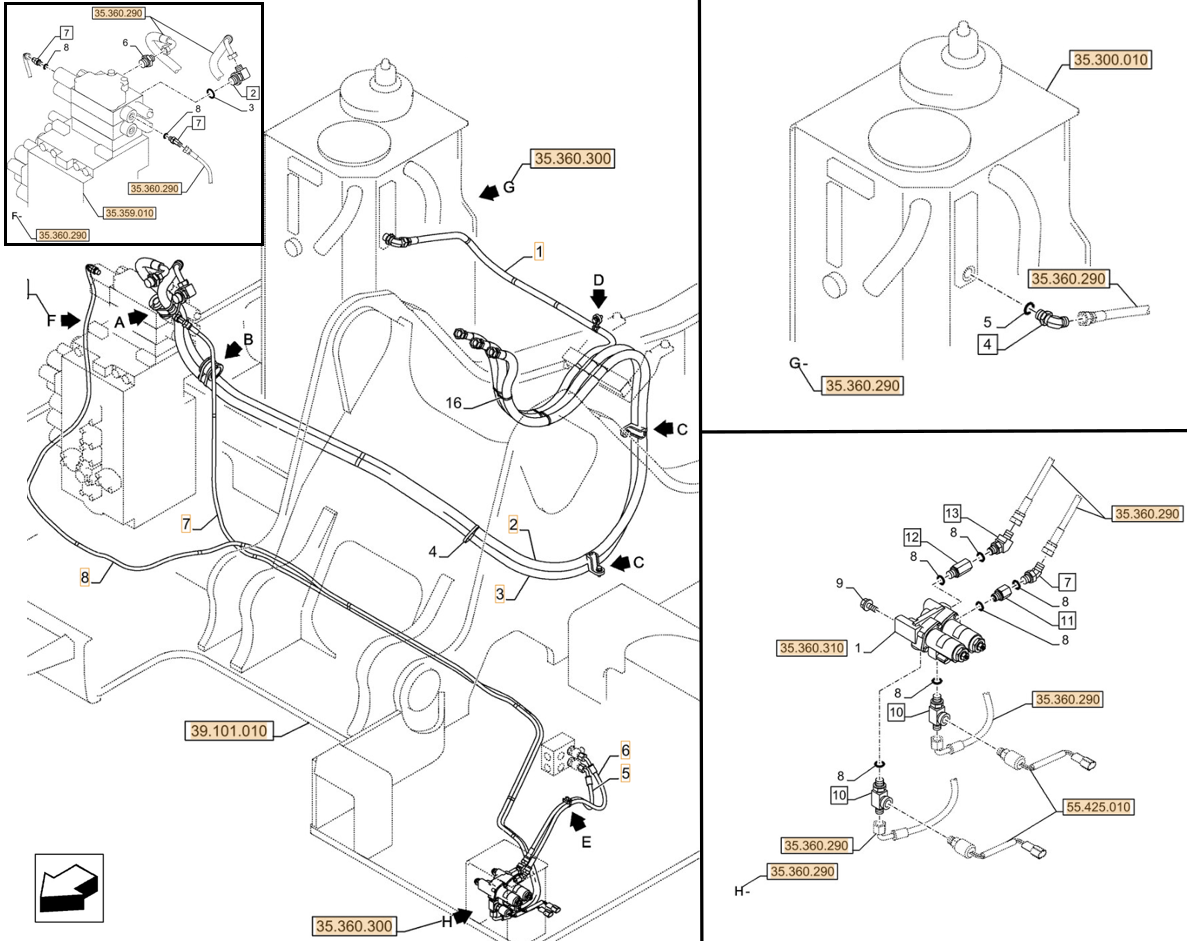

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number KHJ11480 before removing the hose.

Case CX245D installation diagram showing hydraulic hose KHJ11480 at Pipe No. 8 — **Case CX245D**Part KHJ11480 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: KHJ11480
Diagram pipe number: 8
Installation route: 破碎器踏板~分配阀右
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,950 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
