Individual hose record

KHJ2084 Hose Repair Specifications

Excavator · Case · CX245D · Attachments – Breaker

Finished length350 mm

Locate this hose

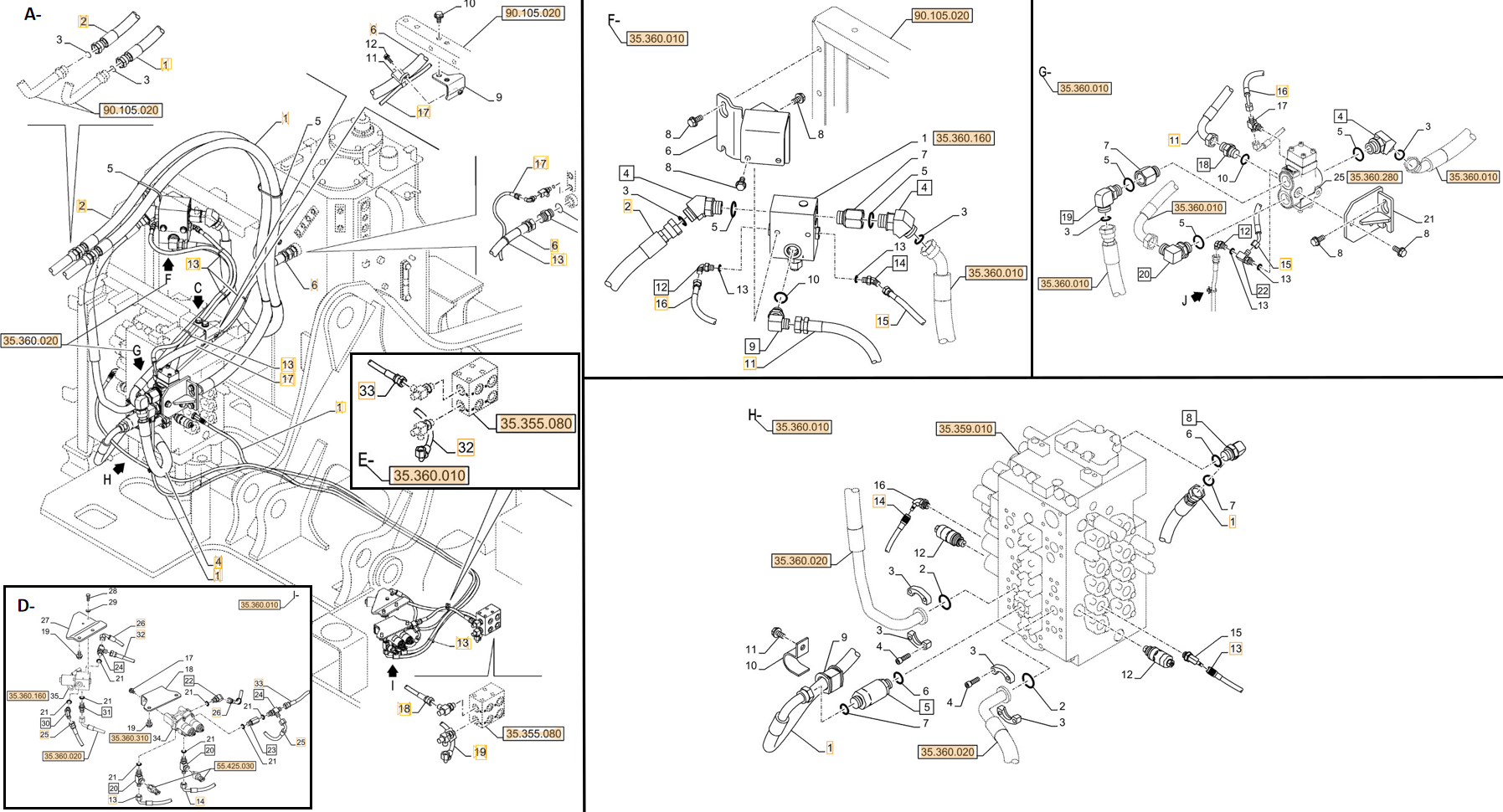

Installation diagram — Pipe No. I26

Locate Pipe No. I26 in the diagram, then confirm part number KHJ2084 before removing the hose.

Case CX245D installation diagram showing hydraulic hose KHJ2084 at Pipe No. I26 — **Case CX245D**Part KHJ2084 · Pipe No. I26Open full-size diagram

Repair specifications

Part number: KHJ2084
Diagram pipe number: I26
Installation route: 破碎器踏板~电磁阀(破碎器踏板)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 350 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
