Individual hose record

KTJ12080 Hose Repair Specifications

Excavator · Case · CX490C-8 LC · Swivel Joint

Finished length1,050 mm

Locate this hose

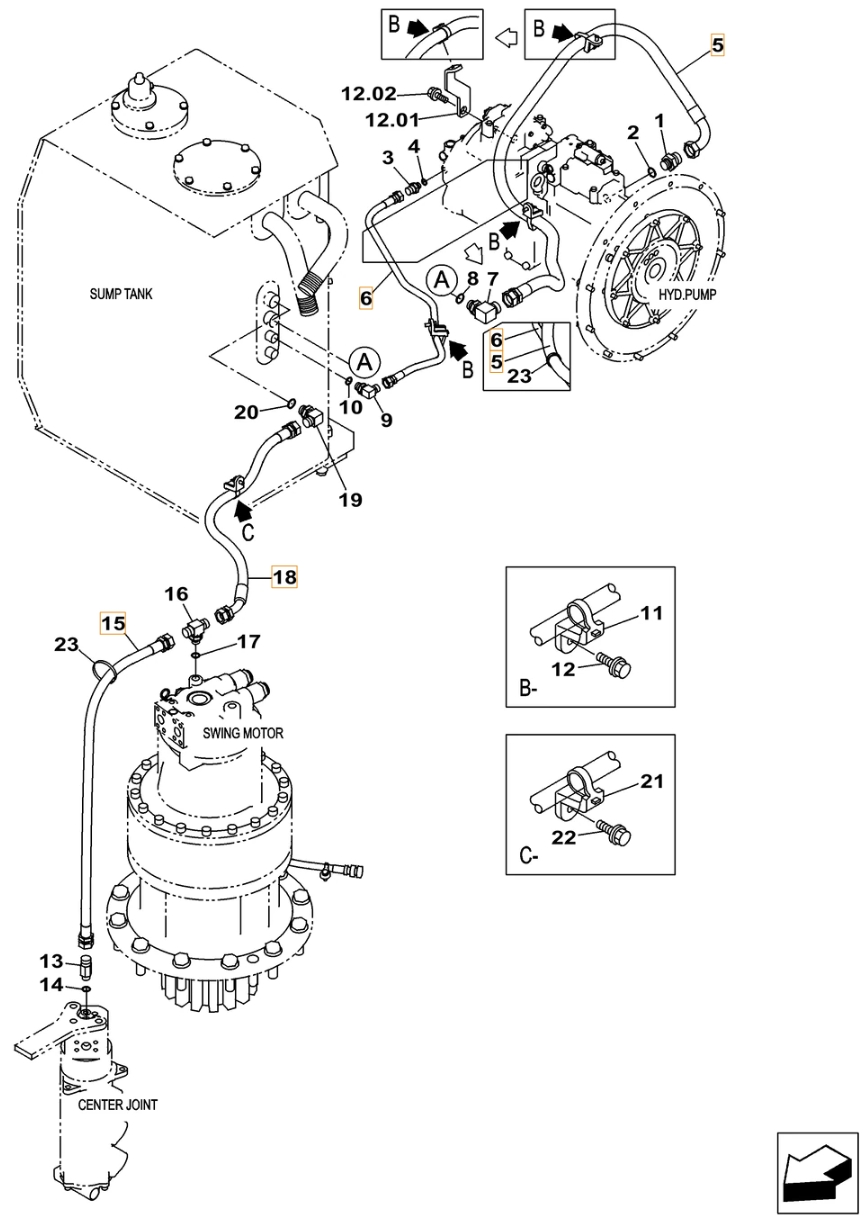

Installation diagram — Pipe No. 15

Locate Pipe No. 15 in the diagram, then confirm part number KTJ12080 before removing the hose.

Part number: KTJ12080
Diagram pipe number: 15
Installation route: 回转接头~回转马达(回油)
Hose specification: DN19;2SN-12;21.5MPa
Finished length: 1,050 mm
Working pressure: 21.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 9

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,600 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 1

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,550 mm
Specification: DN25;4SP-16;32.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 6

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 3,250 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
