Individual hose record

730502000092 Hose Repair Specifications

Excavator · Sunward · SWE210 · Pedal

Finished length350 mm

Locate this hose

Installation diagram — Pipe No. 18

Locate Pipe No. 18 in the diagram, then confirm part number 730502000092 before removing the hose.

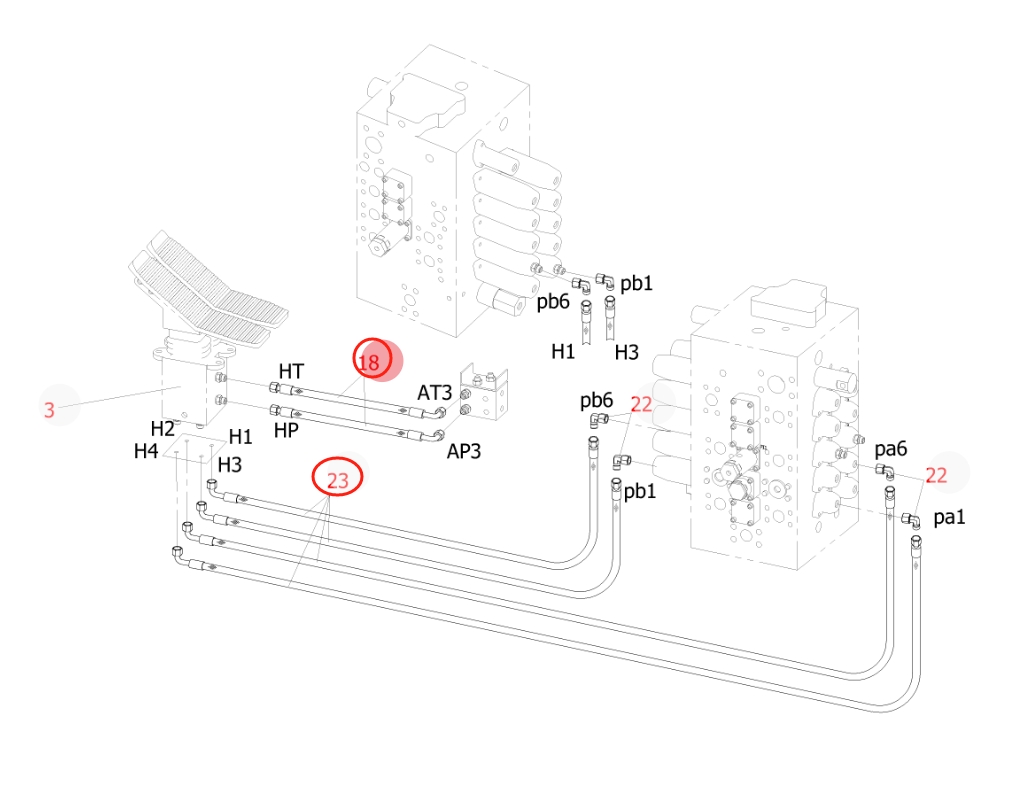

Sunward SWE210 installation diagram showing hydraulic hose 730502000092 at Pipe No. 18 — Sunward SWE210Part 730502000092 · Pipe No. 18Open full-size diagram

Repair specifications

Part number: 730502000092
Diagram pipe number: 18
Installation route: 行走踏板~进回油阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 350 mm
Working pressure: 22.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 56

730502000390

Installation route: 行走踏板~分配阀

Length: 2,900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 55

730502000380

Installation route: 行走踏板~进回油阀

Length: 440 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型

View full repair specifications
