Individual hose record

4276003 Hose Repair Specifications

Excavator · Hitachi · ZX210LC-6N · Attachments

Finished length2,000 mm

Locate this hose

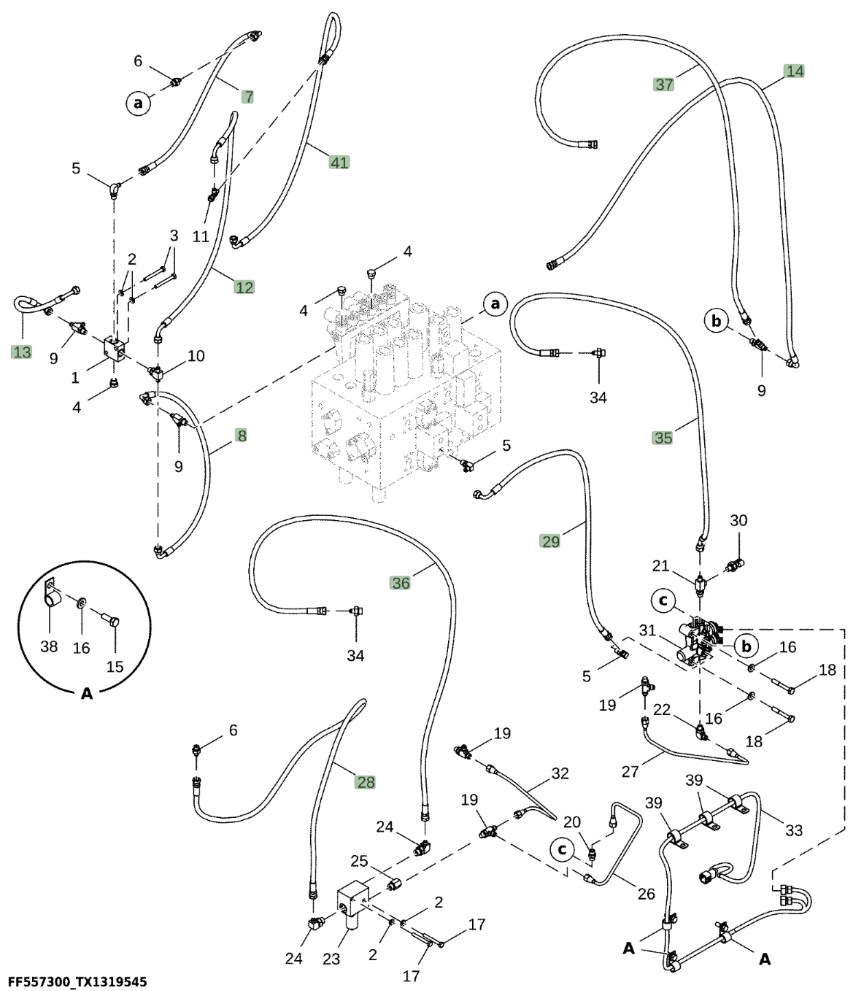

Installation diagram — Pipe No. 14

Locate Pipe No. 14 in the diagram, then confirm part number 4276003 before removing the hose.

Hitachi ZX210LC-6N installation diagram showing hydraulic hose 4276003 at Pipe No. 14 — Hitachi ZX210LC-6NPart 4276003 · Pipe No. 14Open full-size diagram

Repair specifications

Part number: 4276003
Diagram pipe number: 14
Installation route: 电磁阀~
Hose specification: DN6;1SN-04;7Mpa
Finished length: 2,000 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 41

4249348

Installation route: 分配阀上~过渡阀块(分配阀)

Length: 1,150 mm
Specification: DN6;1SN-04;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 8

4648918

Installation route: 分配阀左~过渡阀块(分配阀)

Length: 850 mm
Specification: DN6;1SN-04;7Mpa
Left fitting: 90°美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications
