Individual hose record

159211A1 Hose Repair Specifications

Excavator · Case · CX210B · Control Lever

Finished length2,000 mm

Locate this hose

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 159211A1 before removing the hose.

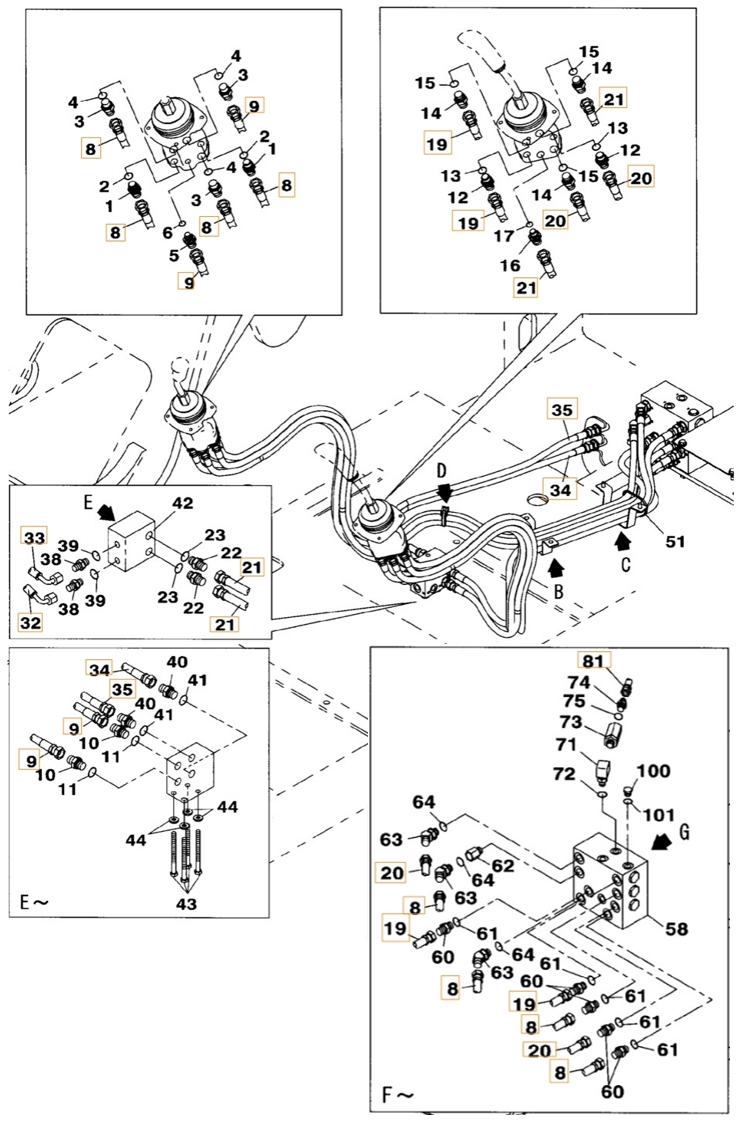

Case CX210B installation diagram showing hydraulic hose 159211A1 at Pipe No. 8 — **Case CX210B**Part 159211A1 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 159211A1
Diagram pipe number: 8
Installation route: 右手柄~中转接头
Hose specification: DN10;1SN-06;18MPa
Finished length: 2,000 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 4

Same system

Related Hoses

Diagram Pipe No. 109

KHJ15490

Installation route: 中转接头~分配阀后

Length: 1,350 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 69

KHJ2255

Installation route: 中转接头~液压油箱

Length: 2,100 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 78

KHJ2318

Installation route: 中转接头~分配阀前

Length: 1,400 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 110

KHJ11530

Installation route: 中转接头~分配阀后

Length: 1,250 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 111

KHJ2054

Installation route: 中转接头~分配阀后

Length: 1,200 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 8

159211A1

Installation route: 右手柄~模式转换阀

Length: 2,000 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications
