Individual hose record

DS2093102 Hose Repair Specifications

Excavator · Doosan · DX140W · Attachments – Breaker

Finished length430 mm

Locate this hose

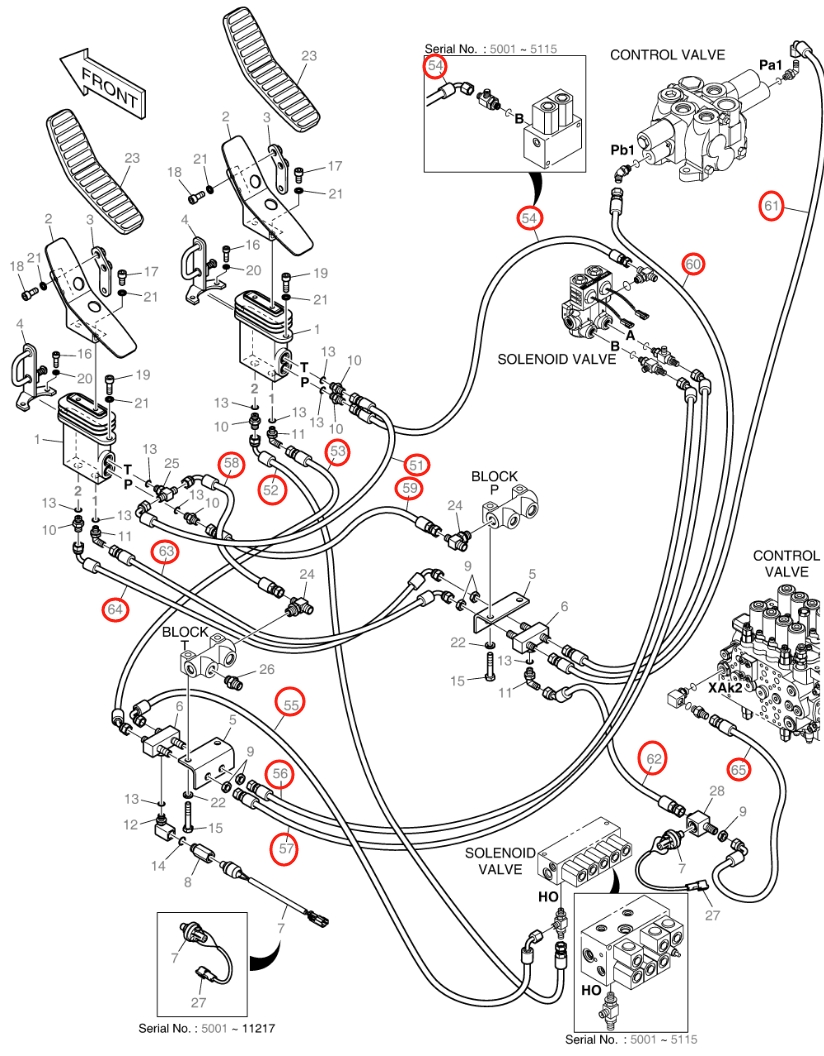

Installation diagram — Pipe No. 51

Locate Pipe No. 51 in the diagram, then confirm part number DS2093102 before removing the hose.

Doosan DX140W installation diagram showing hydraulic hose DS2093102 at Pipe No. 51 — **Doosan DX140W**Part DS2093102 · Pipe No. 51Open full-size diagram

Repair specifications

Part number: DS2093102
Diagram pipe number: 51
Installation route: 破碎器踏板T口~分节油缸踏板T口
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 430 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
