Individual hose record

DS2093056 Hose Repair Specifications

Excavator · Doosan · DX140W · Attachments – Breaker

Finished length1,300 mm

Locate this hose

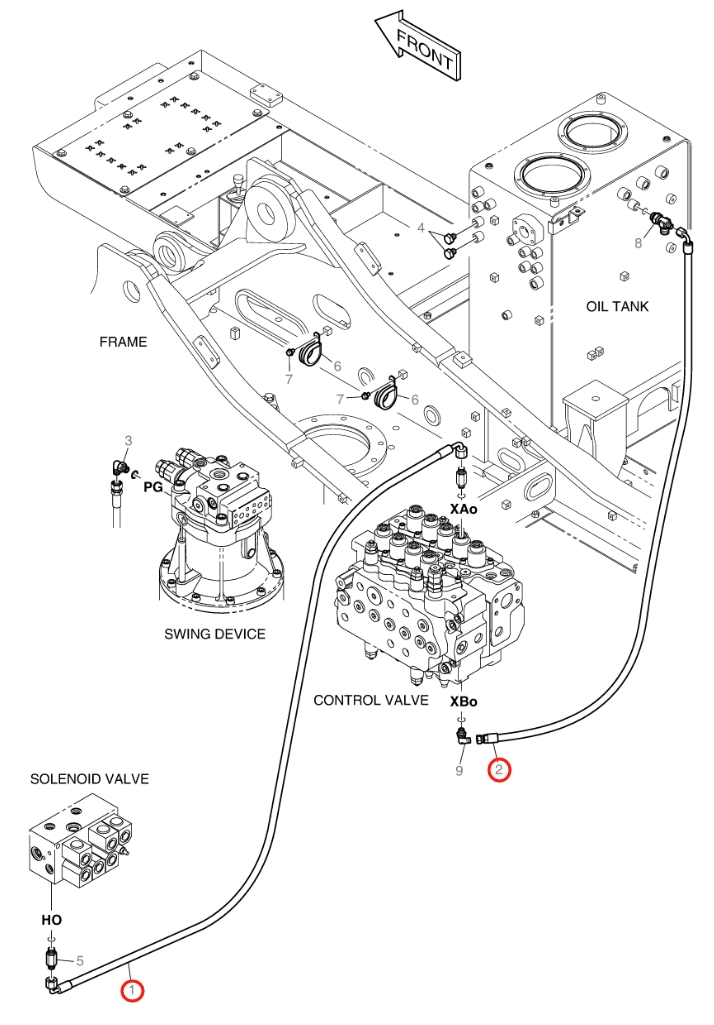

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number DS2093056 before removing the hose.

Doosan DX140W installation diagram showing hydraulic hose DS2093056 at Pipe No. 2 — **Doosan DX140W**Part DS2093056 · Pipe No. 2Open full-size diagram

Repair specifications

Part number: DS2093056
Diagram pipe number: 2
Installation route: 分配阀XBO口~液压油箱
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,300 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
