Individual hose record
4636420 Hose Repair Specifications
Excavator · Hitachi · ZX310F-FE-6N · Attachments – Lock Valve
Finished length600 mm
Locate this hose

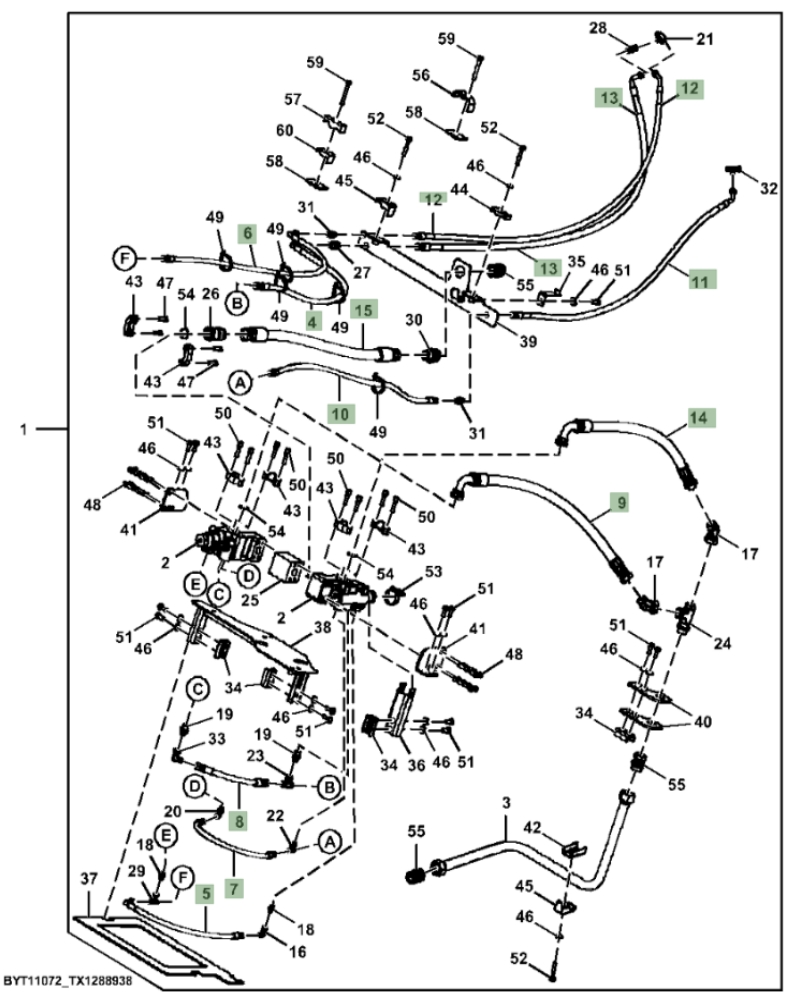

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 4636420 before removing the hose.
Repair specifications
- Part number
- 4636420
- Diagram pipe number
- 5
- Installation route
- Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 600 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
