Individual hose record
DS2123123 Hose Repair Specifications
Excavator · Doosan · DX140LCR-5 · Attachments – Lock Valve
Finished length590 mm
Locate this hose

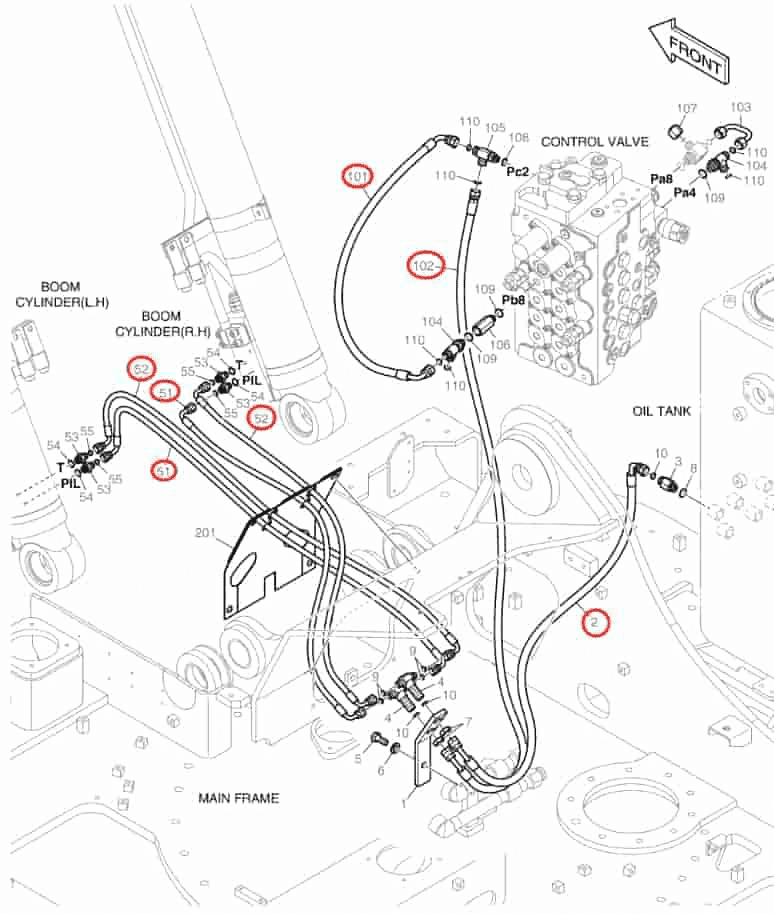

Installation diagram — Pipe No. 101
Locate Pipe No. 101 in the diagram, then confirm part number DS2123123 before removing the hose.
Repair specifications
- Part number
- DS2123123
- Diagram pipe number
- 101
- Installation route
- 分配阀PC2口~分配阀PB8口
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 590 mm
- Working pressure
- 18 MPa
- Left fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
