Individual hose record
730502002325 Hose Repair Specifications
Excavator · Sunward · SWE155F · Attachments – Breaker
Finished length720 mm
Locate this hose

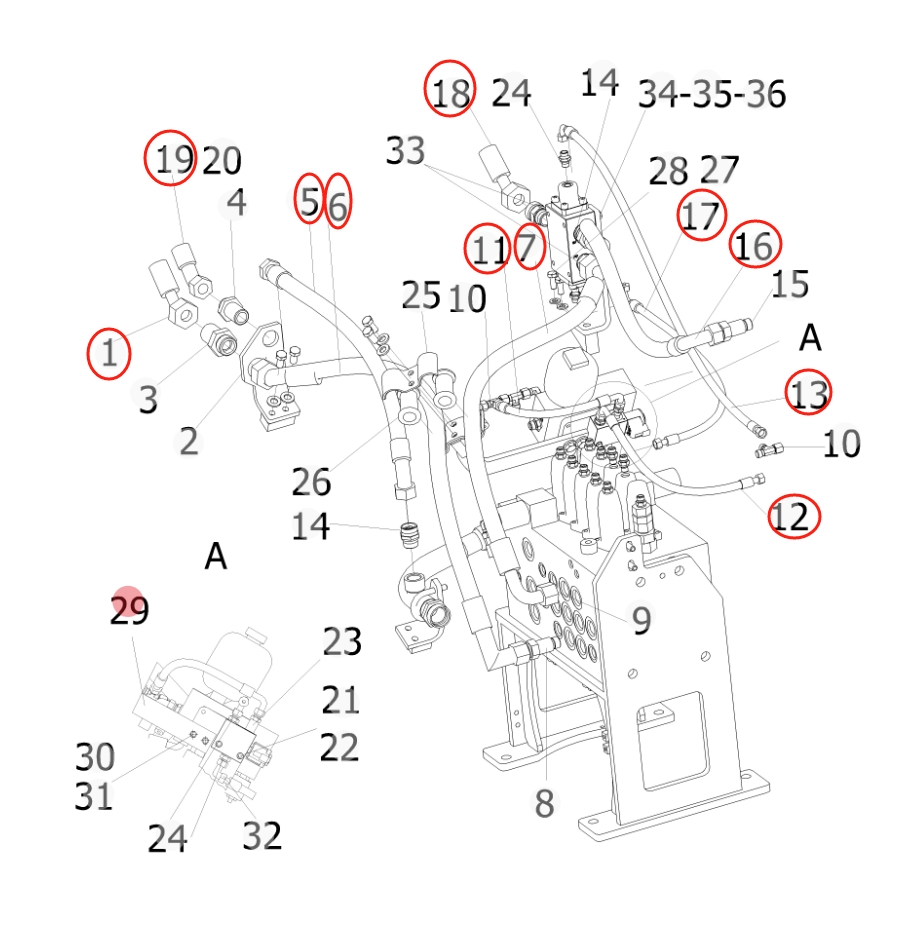

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number 730502002325 before removing the hose.
Repair specifications
- Part number
- 730502002325
- Diagram pipe number
- 16
- Installation route
- 过渡阀块(破碎器)右~液压油箱
- Hose specification
- DN20;1SN-12;12MPa
- Finished length
- 720 mm
- Working pressure
- 12 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
