Individual hose record

730502002435 Hose Repair Specifications

Excavator · Sunward · SWE155F · Attachments – Breaker

Finished length1,500 mm

Locate this hose

Installation diagram — Pipe No. 4

Locate Pipe No. 4 in the diagram, then confirm part number 730502002435 before removing the hose.

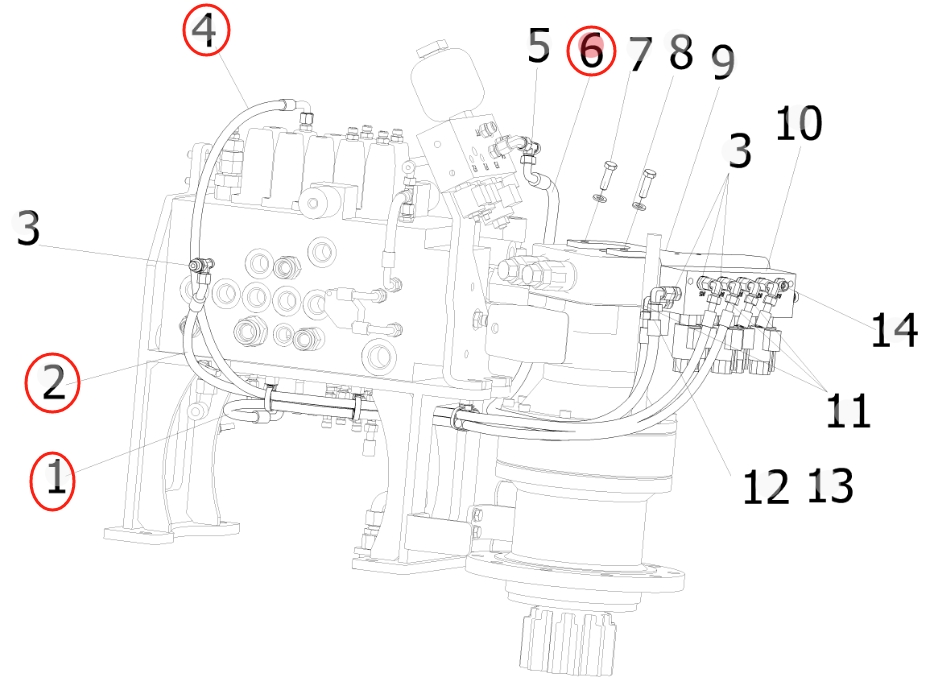

Sunward SWE155F installation diagram showing hydraulic hose 730502002435 at Pipe No. 4 — **Sunward SWE155F**Part 730502002435 · Pipe No. 4Open full-size diagram

Repair specifications

Part number: 730502002435
Diagram pipe number: 4
Installation route: 分配阀~电磁阀(回转马达)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,500 mm
Working pressure: 22.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 16

730502002325

Installation route: 过渡阀块(破碎器)右~液压油箱

Length: 720 mm
Specification: DN20;1SN-12;12MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 11

730502001142

Installation route: 蓄能器电磁阀(破碎器)~

Length: 300 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 5

730502002426

Installation route: 回油铁管(分配阀)~接线板(大臂下)

Length: 640 mm
Specification: DN20;1SN-12;12MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 45°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 9

730503001631

Installation route: 大臂(后段)~卸压安全阀(破碎器)

Length: 720 mm
Specification: DN20;6SH-12;35MPa
Left fitting: 90°公制内螺纹24°锥带O形圈-重型
Right fitting: 90°公制内螺纹24°锥带O形圈-重型

View full repair specifications

Diagram Pipe No. 12

730502000375

Installation route: 蓄能器电磁阀(破碎器)~

Length: 400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 15

730504007980

Installation route: 大臂(后段)~卸压安全阀(破碎器)

Length: 800 mm
Specification: DN20;6SH-12;35MPa
Left fitting: 90°公制内螺纹24°锥带O形圈-重型
Right fitting: 90°公制内螺纹24°锥带O形圈-重型

View full repair specifications

Diagram Pipe No. 17

730502002857

Installation route: 过渡阀块(破碎器)~蓄能器电磁阀(破碎器)

Length: 570 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 16

730501001662

Installation route: 过渡阀块(破碎器)右~液压油箱

Length: 1,150 mm
Specification: DN20;1SN-12;12MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications
