Individual hose record
4656047 Hose Repair Specifications
Excavator · Hitachi · ZX220W-3 · Swing Motor
Finished length2,400 mm
Locate this hose

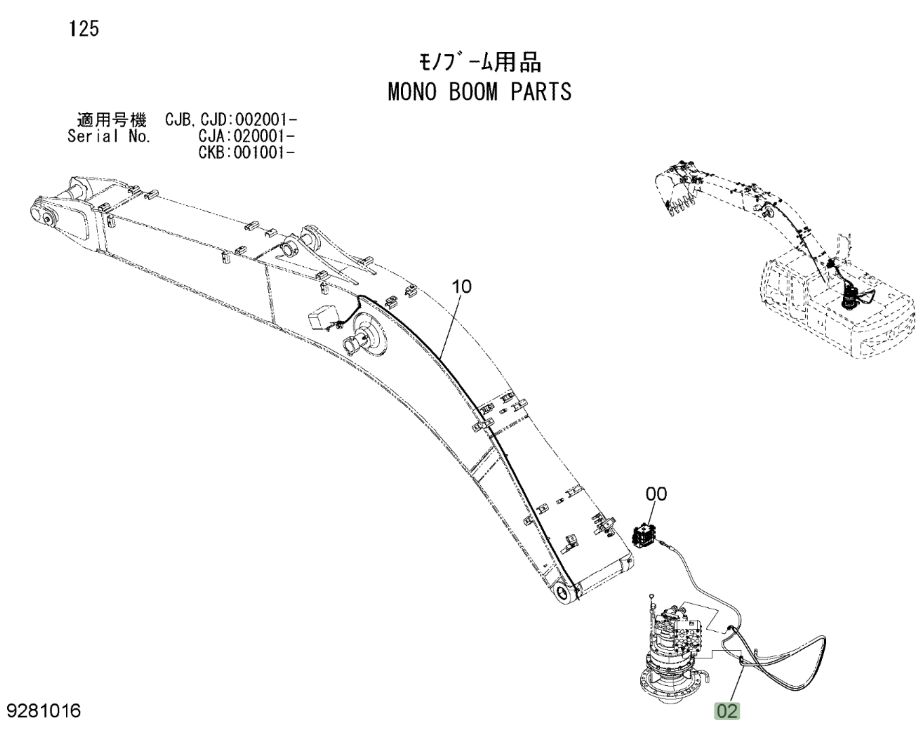

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 4656047 before removing the hose.
Repair specifications
- Part number
- 4656047
- Diagram pipe number
- 2
- Installation route
- 回转马达(左)~回转马达(右)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 2,400 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
