KHJ2067 Hose Repair Specifications

Excavator · Case · CX210B SL · Attachments – Breaker

Finished length2,200 mm

Locate this hose

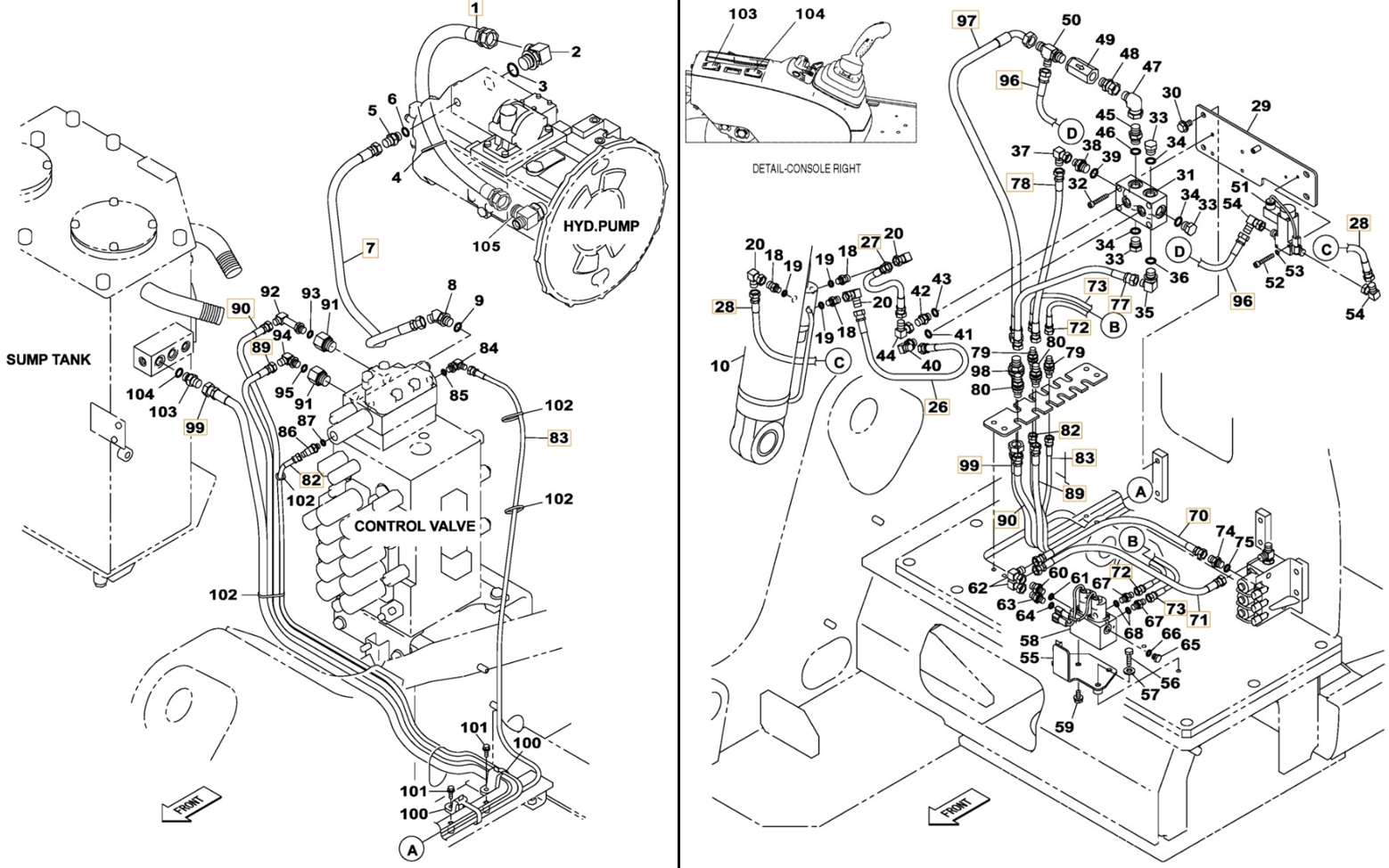

Installation diagram — Pipe No. 82

Locate Pipe No. 82 in the diagram, then confirm part number KHJ2067 before removing the hose.

Part number: KHJ2067
Diagram pipe number: 82
Installation route: 破碎器控制阀~隔板接头总成
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,200 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 83

Installation route: 破碎器控制阀~隔板接头总成

Length: 2,500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 32

Installation route: 大臂前段铁管~大臂后段铁管

Length: 750 mm
Specification: DN25;4SP-16;32.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
