Individual hose record
4203100 Hose Repair Specifications
Excavator · Hitachi · EX270LC · Control Valve
Finished length1,370 mm
Locate this hose

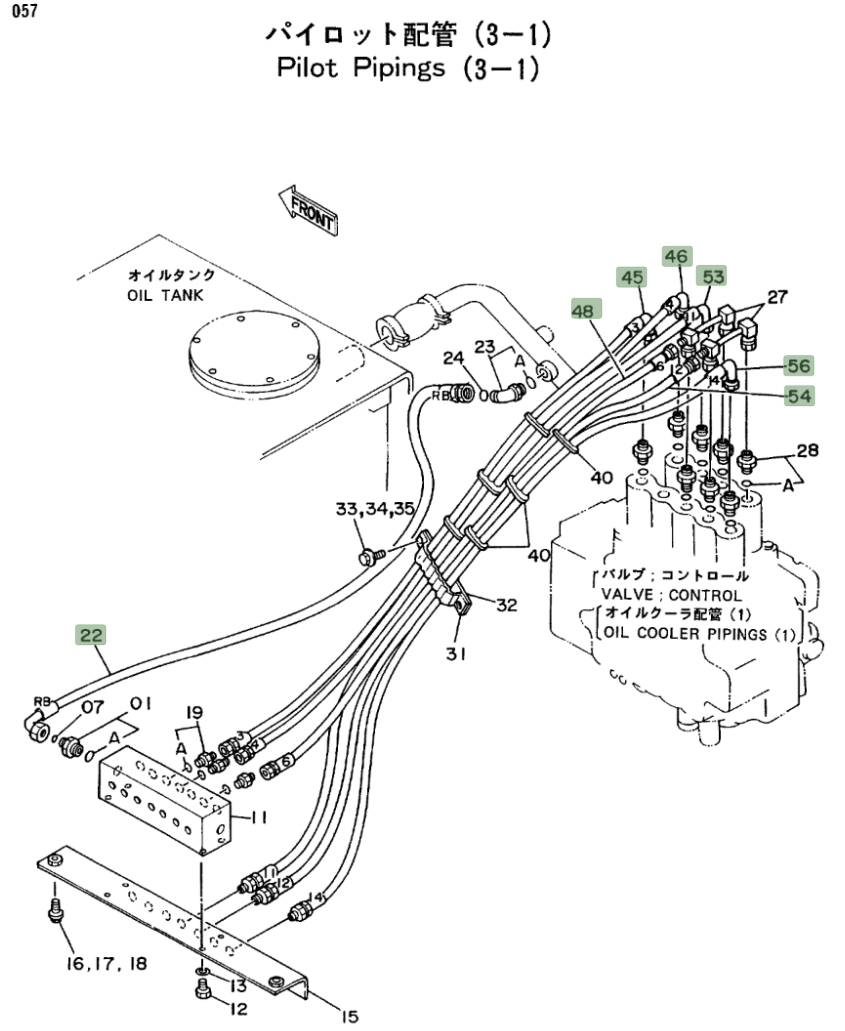

Installation diagram — Pipe No. 56
Locate Pipe No. 56 in the diagram, then confirm part number 4203100 before removing the hose.
Repair specifications
- Part number
- 4203100
- Diagram pipe number
- 56
- Installation route
- 分配阀上~接线板(中转接头)
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 1,370 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制外螺纹37°外锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
